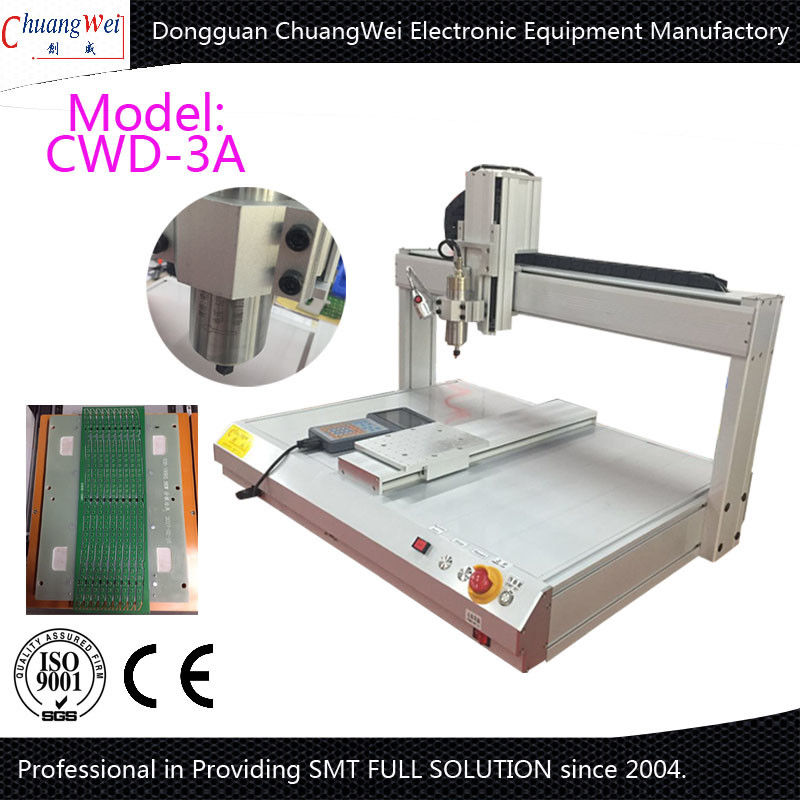

0.5KW Manual Desktop PCB Router Machine with Air Cooled Spindle,PCB Depanelizer

0.5KW Manual Desktop PCB Router Machine with Air Cooled Spindle,PCB Depanelizer
0.5KW Manual Desktop PCB Router Machine with Air Cooled Spindle,PCB Depanelizer

Large Image :  0.5KW Manual Desktop PCB Router Machine with Air Cooled Spindle,PCB Depanelizer

Product Details:

Place of Origin: China
Brand Name: Chuangwei PCB Separator
Certification: CE
Model Number: CWD-3A

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 7 days
Supply Ability: 100 Sets/Month
Contact Now
Detailed Product Description
Color: White Program: Teaching Box
PCB Max Size: 650*450mm(Could Be Customized Made) PCB Thickness: 0.6-3.5mm
Spindle: China Name: PCB Router
Highlight:

pcb depaneling equipment

,

laser pcb depaneling machine

0.5KW Manual Desktop PCB Router Machine with Air Cooled Spindle,PCB Depanelizer

Features:

  • Desktop Robots
  • Programming using a user-friendly teaching pendant with large. No need to learn complicated programming languages.
  • Vacuum system for Down Vac version sits under the board support fixture for removing debris and dust.
  • 50,000 rpm spindle motor
  • Repeatable accuracy ±.01mm
  • 2 models available up to a work area of 650mm x 450mm
  • Store up to 100 programs or 6000 work points on the memory card resident in the router.
  • ChuangWei will design and build your fixtures
  • For in-line applications, a floor type routing system is available



Specification:



Motor drive system

Servo / stepper motor

Spindle speed

50000r/s

Cutting performance

500mm/s

Drive system repeatability

±0.02mm

Cutting speed Resolution

±0.01mm

Configuration

X,Y,Z 3 axis Max 100mm/S(depends on PCB material and cutting quality)

Repeatability

<0.1mm

PCB positioning fixture load/unload

 Manual

PCB thickness

 0.4-4mm

Working area

 650*450mm

Spindle motor power

0.5KW

Spindle motor speed

50000r/m

Spindle motor cooling

Air-cooled

Machine dimension

980*580*615mm

Weight

135KG

Security settings

emergency stop switch


Production Flow:

0.5KW Manual Desktop PCB Router Machine with Air Cooled Spindle,PCB Depanelizer 0



Customer List:

0.5KW Manual Desktop PCB Router Machine with Air Cooled Spindle,PCB Depanelizer 1
