PCB Labeling Machine Automatic Sticker Machine with High Accuracy 0.05mm

All Products

PCB Separator (161)

Laser Depaneling Machine (84)

PCB Router Machine (95)

PCB Depaneling (165)

PCB Depanel (111)

Hot Bar Soldering Machine (154)

Screw Tightening Machine (42)

Automated Dispensing Machines (53)

PCB Depanelizer (98)

PCB Separation (100)

V-Cut PCB Separator (169)

PCB Depaneling Machine (142)

PCB Punching Machine (100)

SMT Cleaning Equipment (23)

PCB Labeling machine (43)

Solder Pallet (47)

China Dongguan Chuangwei Electronic Equipment Manufactory certification

The router works fine. I would like to special thanks to you one more time for your support!

—— Ahmet

I was set up your machine one week ago. İt’s good working. Thank you for all.

—— Erdem

The machine operates well, we will purchase it again

—— Jon

The machine works very well, now we train all workers.

—— Michal

I'm Online Chat Now

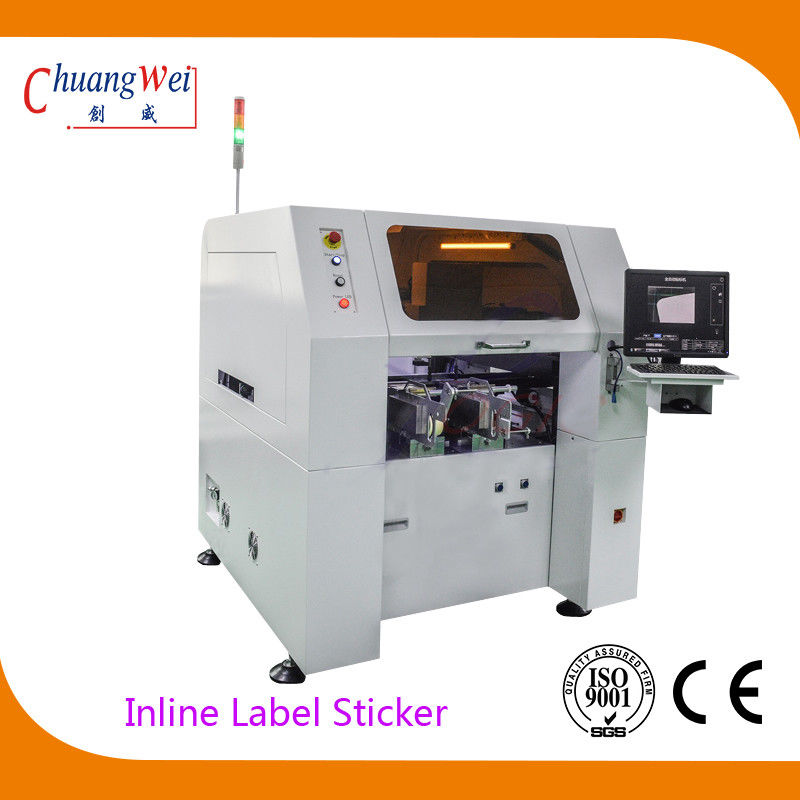

PCB Labeling Machine Automatic Sticker Machine with High Accuracy 0.05mm

Large Image : PCB Labeling Machine Automatic Sticker Machine with High Accuracy 0.05mm

Product Details:

Place of Origin:	China
Brand Name:	Chuangwei
Certification:	CE, ISO9001
Model Number:	CWTB-T2

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	plywood case
Delivery Time:	10 days
Supply Ability:	100set

Contact Now

Detailed Product Description

Color:	White	Working Area:	320*280mm
Precision:	±0.05mm	Mounting Speed:	1.5-2.5sec/pcs
Max PCB Height:	Up 90 Down 90mm	PCB Thickness:	0.5-3.5mm
Repeat Accuracy:	0.05mm	Dimension:	L1130W1096H1426mm
Weight:	800kgs	Name:	Autmatic Sticker Machine
Highlight:	label maker machine , automatic labeler machine

PCB Labeling Machine Automatic Sticker Machine with High Accuracy 0.05mm

Standard platform,Smart Accommodation

Accommodates for electronic products like mobile,various PCB,SMT produce line and FPC,camera ,LED chip etc,which will replace labour for place pressure sensitive adhesive,conductive adhesive,double-face sticker , Thermal conductive silicone foam ,shield laminating ,label,protecting film and bar code ,QR code etc.

Specifications:

Mount accuracy	±0.05mm
Positioning accuracy	±0.025mm
Repeat positioning accuracy	±0.05mm
Mounting Speed	1.5-2.5sec/pcs
Component Range	Min:L5W5mm,Max:L80W40mm
PCB size	Max:L340*W280mm
PCB Thickness	0.5-6.5mm
Feeder capacity	Standard: 2 feeders(80mm)
Positioning method	MARK point & screen frame for visual positioning+parts visual compensation
Mount head number	2PCS
Entry way	L-R R-L L-L R-R
Machine Dimension	L1130W1096H1426mm
Power Supply	200-240V 50/60Hz single phase AC 200-240V 50/60Hz
Power	1.0KW
Air Supply	0.4-0.6Mpa Dry air 0.4-0.6 bar
Machine Weight	About 800KG

Machine Features:

Mounting speed:1.3-2.5 sec/pcs
High Precision:The mounting element adopt the camera to identify the positioning,PCB positioning using Mark camera ,precise positioning (two positioning ).
Economic and convienent Nozzle: The Z axis buffer mechanism is designed on the mounting head to avoid the complexity of the nozzle design to ensure the safety of the product and to reduce the cost of the nozzle ,Easy to Changeover and increase throughout greatly.
When installing the components, the torque mode is adopted to protect the product and prevent the damage.
The vision system supports read date for one dimensional code, two-dimensional code.
Stable and perfect control system, support various materials,production methods and other application etc.
With the EMS system to achieve online production.

Configuration:


High precision and stable structure integrated frame to ensure stability for high speed mounting work.	High optimized electric control box structure,compact and safe electric arrangement,which can effectively save space and ensure the convenience of maintenance.	Adopt high precision servo motor and high precision screw guide rail are used to form a complete closed loop control system to ensure that the equipment with high and stable repeatability positioning accuracy.

High precision vision system hardware is composed of two high resolution cameras,positioning algorithm ,with multi axis mount head to improve efficiency greatly.	Two simple operation electronic smart feeder which Accurate feeding and easy to changeover and could be customized according to customer requirements of various specifications of automatic feeding device.	Double mounting nozzles is controlled independently which improve high mounting precision greatly and can mounting two different materials at same time.
