| Max Fixture Size: | ￠1000*H400(mm) | Filter System: | 3 Levels |
|---|---|---|---|
| Spray Pressure: | 3-6KG | Name: | Fixture Cleaning Machine |
| Highlight: | pallet washer machines,smt stencil cleaner |
||

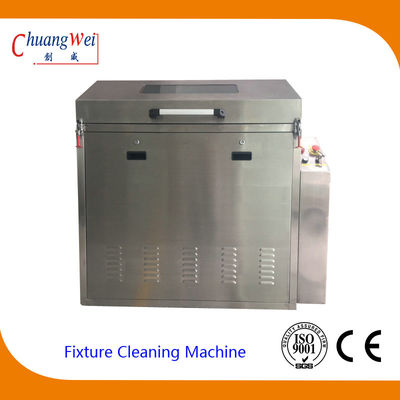

SMT Cleaning Equipment Fixture Cleaning High Cleaning Efficiency CW -5200
Machine description:
CW-5200 fixture cleaning machine is used to clean Grease, Flux, Rosin on the surface of all kinds of SMT parts, such as composite stone fixture, tray, reflow oven cooler and filter, wave soldering oven claw, chains and nets, etc.
Machine Feature:
1. PLC procedure control, touch panel operation, world class reliable electric parts.
2. SUS 304 machine wash room and frame, resit Acid and Alkali corrosion, 10 years life time.
3. One-button mode of operation, high pressure clean + rinse + hot air dry, all process complete in one time automatically.
4. Closed-loop clean and rinse, clean solvent and rinse solvent is filtered in the machine.
5. Solvent recycled to use and cost down.
6. The fixtures are clean and dry after cleaning, standby and ready for use.
7. Standard equipped with auto fill-in and drain-out function.
8. Labor cost save, clean efficiency raise
9. Clean solution heat and keep temperature function.
Machine Specification:
| Item | Parameter |
| Max fixture size | ￠1000*H400(mm) |
| Spray system | All round rotate spray clean and rinse |
| Filter system | 50/20/1um filter(3 levels) |
| Clean tank capacity | 80L |
| Rinse tank capacity | 80L |
| Spray pressure | 3-6kg |
| Air supply | 0.5-0.7Mpa |
| Machine weight | 560kgs |
| Machine size | 2100mm(L) x 1380mm(W) x 1400mm(H) |
