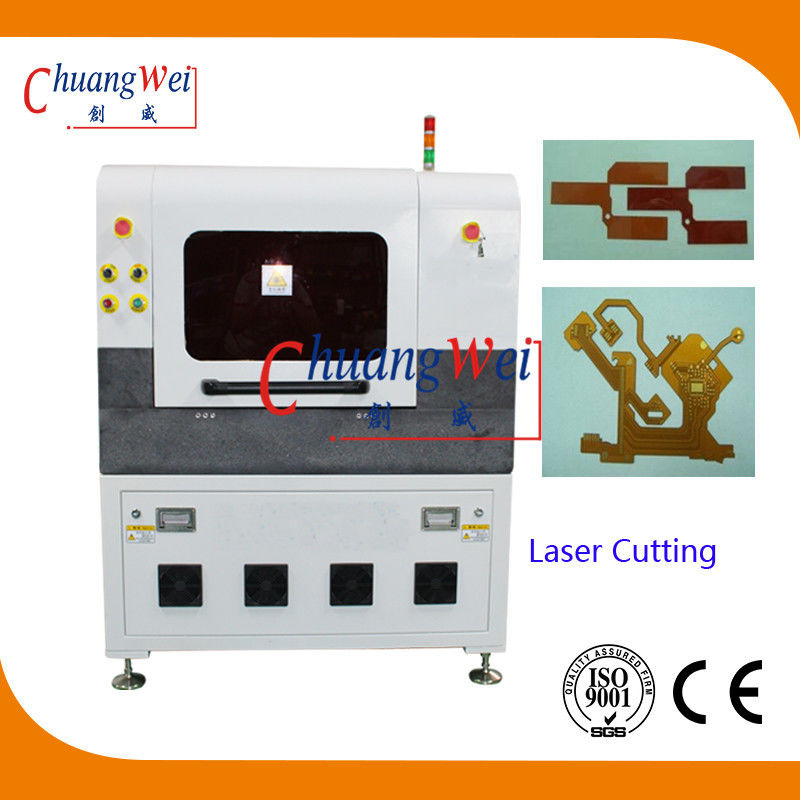

Laser Cutting PCB Depaneling Machine,17W UV Laser Cutter Equipment

Laser Cutting PCB Depaneling Machine,17W UV Laser Cutter Equipment
Laser Cutting PCB Depaneling Machine,17W UV Laser Cutter Equipment

Large Image :  Laser Cutting PCB Depaneling Machine,17W UV Laser Cutter Equipment

Product Details:

Place of Origin: China
Brand Name: Chuangwei
Certification: CE
Model Number: CWVC-6

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 5-7 days
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Color: White Laser Power: 12/15W(optional)
Type: UV Working Size: 300*300 Mm
Size: 1000mm*940mm *1520 Mm Precision: ±20 μm
Laser Brand: USA Or Germany Laser Wavelength: 355nm
Laser Scanning Speed: 2500mm/s (max) Description: PCB Depaneling Machine
Highlight:

pcb laser cutting machine

,

laser pcb depaneling machine

Laser Cutting PCB Depaneling Machine,17W UV Laser Cutter Equipment



PCB Depaneling Machine Parameter



Parameter















Technical parameters

 Main body of laser 1000mm*940mm *1520 mm
Weight of machine 450Kg
Power AC220 V
Laser 355 nm
Laser



Optowave 10W(US)
Material ≤1.2 mm
Precisio ±20 μm
Platfor ±2 μm
Platform ±2 μm
Working area 300*300mm
Maximum 3 KW
Vibrating CTI(US)
Power AC220 V
Diameter 20±5 μm
Ambient 20±2 ℃
Ambient ＜60 %
The Machine Marble





PCB Depaneling Machine Advantages

  • The laser process is completely software-controlled. Varying materials or cutting contours are easily taken into account through adapting the processing parameters and laser paths.
  • In the case of laser cutting with the UV laser, no appreciable mechanical or thermal stresses occur.
  • The laser beam merely requires a few µm as a cutting channel. More components can thus be placed on a panel.
  • The system software differentiates between operation in production and setting up processes. That clearly reduces instances of faulty operation.
  • The fiducial recognition by the integrated vision system is done in the latest version around 100% faster than before.



PCB Depaneling Machine Application

FPC and some relative materials;

  FPC/PCB/ Rigid-Flex PCB cutting, Camera module cutting;





Laser Cutting PCB Depaneling Machine,17W UV Laser Cutter Equipment 0Laser Cutting PCB Depaneling Machine,17W UV Laser Cutter Equipment 1
