Product Details:
Payment & Shipping Terms:
|
| Cutting Length: | Unlimited | Material For The Blades: | High Speed Steel |
|---|---|---|---|
| Number Of Blades: | 9 Pairs | Blades Shape: | Circular Blades |
| Warranty: | Machine Free For One Year | Machine Type: | Automatic Type |
| Name: | Led Strip Pcb Separator | ||
| Highlight: | PCB depaneling,PCB separators,Multi Slitter Cutting PCB Separator |
||
Multi Slitter Cutting LED Strip MCPCB PCB Separator for LED,PCB Depanelizer
Specification:
Machine Model: CWVC-5
Max .Cutting length: unlimited
Blades material: High speed steel
Cutting speed: 400 mm /s
Voltage: 220 /110 V
Cutting thickness: 1.0-3.5 mm
Machine size: 2180 * 620 * 960 mm

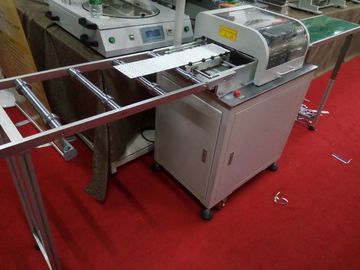

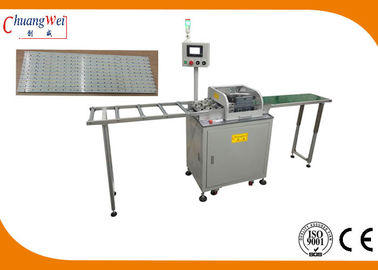

Detailed pictures for CWVC-1SN:
PCB Depaneling machine with 9 pairs of blades,CWVC-5 Features:
1. The machine adopts the computer screen control with a counting device, which you can use to preset the processing production. And the space of cutting tool is visible on the screen.
2. It can cut 8 pcs boards with multiple sets of knives work at the same time.
3. The knife flywheel is adjustable and distance between knives is regulable.
4. The blade is made of high speed steel material, which is durable and have a long service life.
5. It is convenient to adjust the cutting speed through rotary knob With a conveyor belt line, the separated pcb can be send out directly to reduce pick- and-place.
