V Cut PCB Depaneling Machine for LED Lighting MCPCB Strip Panel

Large Image : V Cut PCB Depaneling Machine for LED Lighting MCPCB Strip Panel

Product Details:

Place of Origin:	China
Brand Name:	Chuangwei pcb separator
Certification:	CE GMC
Model Number:	CWVC-4S pcb separator

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	plywooden case
Delivery Time:	3 - 5 days after receive the payment
Supply Ability:	1000 sets per year

Contact Now

Detailed Product Description

Separation Length:	Unlimited	Packaging Detail:	Plywood Case
Delivery Detail:	Within 3 Days After Confirm The Payment	Material:	High Speed Steel
Plateform:	1.2 / 2.4m ( Option )	Cutting:	2 Pcs One Time
Highlight:	pcb depaneling equipment , laser pcb depaneling machine

V Cut PCB Depaneling Machine For LED Lighting MCPCB Strip Panel

Specification :

Max PCB width: 12mm

Platform : 1.5 M /2.4 M length
Machine Size : 40*40*34 cm
The Longest Minimize : No limited
Minimize Speed : 0-520mm/s
Minimize thickness : 1.0-3.5mm
Machine Weight : 70Kg

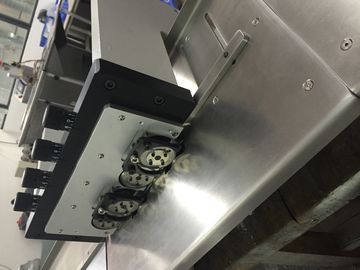

V Cut PCB Depaneling Machine for LED Lighting MCPCB Strip Panel 0

Feature:

1. Guide can be adjusted vertically to suit different LED board.
2. Clearance between the circular blades can be precisely
adjusted by the knob
3. Upper and lower circular blades can be reused after regrinding.
4. Shape and sizes of the circular blades can be made according
to customer's specifications .
5. Standard 2.4M Stainless steel platform(could be custom make)
6. Lower cutting stress to improve depaneling effect

7. Depaneling 2 PCBs at one time, PCB width could be adjustable from(0~12mm)

CE Approval

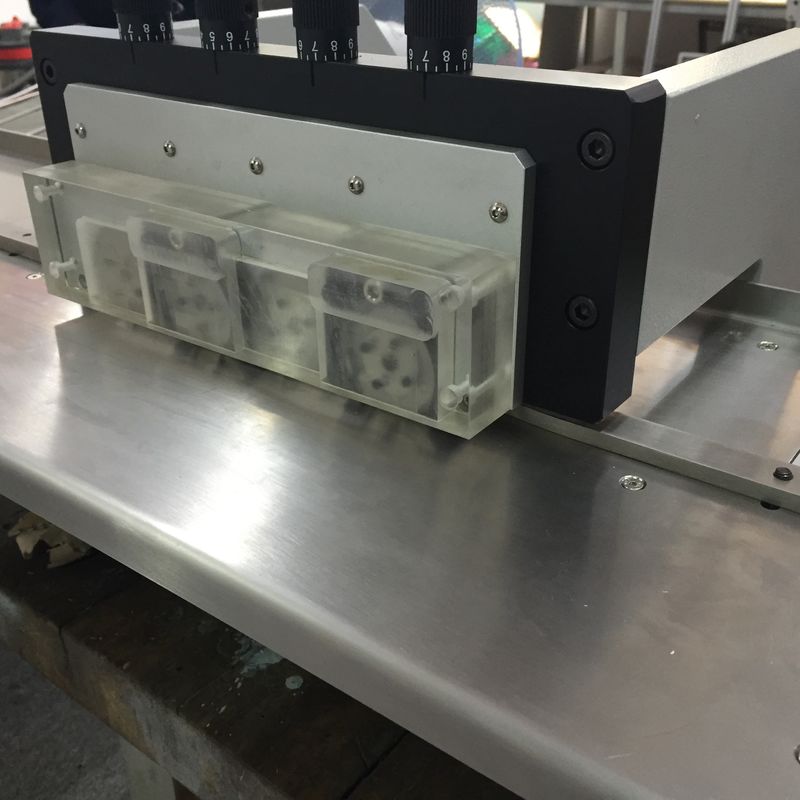

V Cut PCB Depaneling Machine for LED Lighting MCPCB Strip Panel 1
