Product Details:
Payment & Shipping Terms:
|
| Material For The Blades: | High Speed Steel | Number Of Blades: | 3-9 Sets (customized ) |
|---|---|---|---|
| Cutting Length: | Unlimited | Warranty: | Free For One Year |
| Shipping Way: | Option | Name: | Multi-blade PCB Separator |
| Highlight: | pcb depaneling machine,metal cutter machine |
||

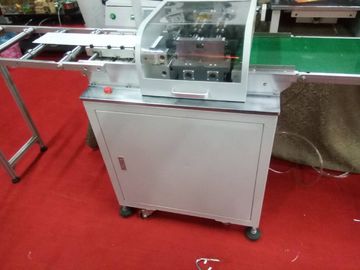

V-Cut PCB Separator for Separating Long MCPCB LED Board at One Time,PCB Depaneler:
Features for pcb separator :

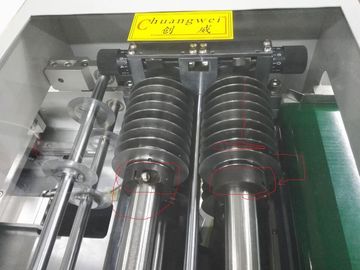

1), 10 pairs of blades is available
2), Of the blades is adjusted toindividual PCB
3), Sensors are used to monitor the separating process
4), The PCBs are placed either by hand or they feed automatically by a loading station.
5), Easy operating
6), Could be adjusted according to PCB sizes and customers' requirements
7), Could be customized made as customers' request
Specification:
Separation speed 100-220 mm/s
Panel length 100-570mm
Panel width Max 310mm
Width off-cut min 3mm
Number of blades max 10 pairs
Width of PCBs 10-300mm
Component height Component side:max 30mm;
Solder side:max 10mm
