Product Details:
Payment & Shipping Terms:
|
| Resolution: | ±0.01mm | Working Area: | 320*320mm(Could Be Customize |
|---|---|---|---|
| Spindle Motor Speed: | 50000r/M | Moving Speed: | Max 500mm/s |
| Milling Cutter: | ∅0.8-∅3.0 L | Routing Spindle: | 50000rpm/min Air Cooling |
| Highlight: | pcb assembly machine,metal cutter machine |
||

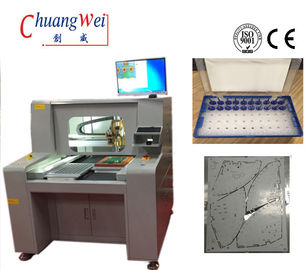

Vaccum Cleaner Prototype PCB Router With Customize Robust Frame
Specification:
| Motor drive system | Servo / stepper motor |
| Spindle speed | 50000r/s |
| Cutting performance | 500mm/s |
| Drive system repeatability | ±0.02mm |
| Cutting speed | Max 100mm/S(depends on PCB material and cutting quality) |
| Resolution | ±0.01mm |
| Configuration | X,Y,Z 3 axis |
| Repeatability | <0.1mm |
| PCB positioning | fixture |
| Load and unload way | Manually |
| PCB thickness | 0.4mm-4mm |
| Working area | 400*400mm(could be customized made) |
| Spindle motor power | 0.5KW |
| Spindle motor speed | 50000r/m |
| Spindle motor cooling | Air-cooled |
| Machine dimension | 650*550*615mm |
| Weight | 73KG |
Feature:
1. Friendly interface make programming very easy.
2. Boards are separated without bending or breaking.
3. Euipped with quality ,air cooling long service life routing sprindle.
4. With vaccum cleaner provides a clean and low noisy work enviroment.
5. Moving speed can reach 500mm/s, routing speed can reach 100mm/s, geatly improve producticon efficiency.
6. Bench-top Automatic Router adopt x,y,z step motor and driving system ,ensure machine run smooth and precisely.routing accuracy less than 0.05mm.
Details:
Bench-top Automatic Router adopt x,y,z step motor and driving system ,ensure machine run smooth and precisely.routing accuracy less than 0.05mm.
X,Y,Z axis step driving system.
Euipped with quality ,air cooling long service life routing sprindle made in Taiwan.
Optional CCD and monitor make programming easier.
Optional fixture according to customer's requirement.
our advantage: cnc router machine cnc router machine cnc router machine cnc router machine
1. We offer 24 hours technical support by call, email.
2. Our technician can give you remote guide online(Skype or MSN) if you have any question
3. We can record videos of operating the laser machine.
4. Free training course in our factory.
5. Machine will be adjusted before it is delivered , operation disk/CD was included
CW-TR Bench-top Automatic PCB Router Include
cwtr Bench-top Automatic PCB Router with:
◎ Vaccum cleaner
◎ Routing sprindle
◎ 3 aix step motor and driving system
◎ Milling cutter 10pcs
◎ 1 year parts warranty
Optional configuration:
◎ Customized fixture
◎ Auxiliary programming CCD and monitor
Always best service for you:
|
1.Engineers available to service machinery oversea. |
Engineers are available to be sent to freign countries to do machinery training and offer technical support. |
|
2.Mature technique & forerunner to process makes high quality machinery. |
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine Our R&D team continuously upgrade the existing machines to meet the market development trend. |
|
3.Effective customer service. pcb router machine |
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers. |
|
4.One year warranty for the machines except accessories. b router machine |
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge. |
|
Our mission: |
Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success |
|
Our Vision: |
PCB industry to become the world's leading solution providers PCB separator. pcb router machine |
