Hot Bar Soldering Equipment Pulse Heated PCB Soldering

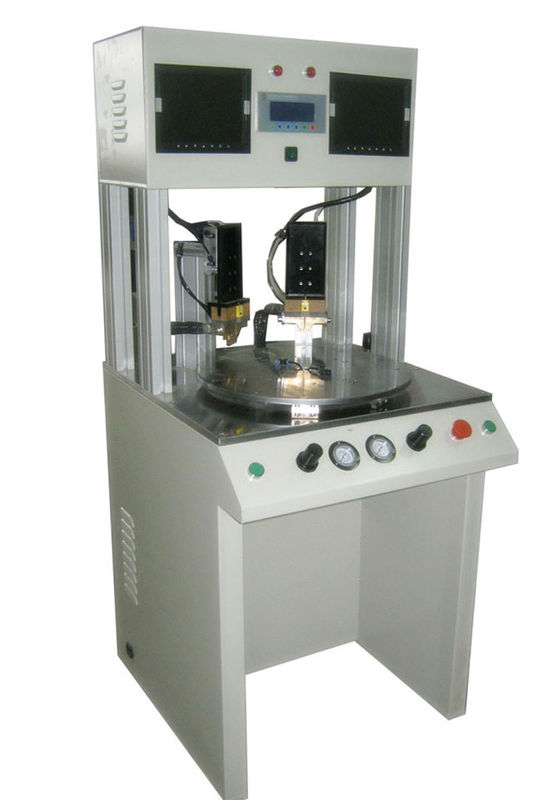

Large Image : Hot Bar Soldering Equipment Pulse Heated PCB Soldering

Product Details:

Place of Origin:	Dongguang china
Brand Name:	Chuangwei
Certification:	CE ISO9001
Model Number:	CWPP-2

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	plywood case (fumigation can offer according to customer)
Delivery Time:	3-5 days after payment confirm
Payment Terms:	L/C, T/T, Western Union,paypal
Supply Ability:	300 sets/month

Contact Now

Detailed Product Description

Type:	Pulse Heating	Air Pressing (MPa):	0.45~0.7
Welding Equipment Type:	TAB TCP ACA ACF FPC PCB Soldering	Working Area:	200mm X 260mm (can Be Customize)
Cooling Way:	Air Cooling	Warning Light:	Ensure Operate Correctly
Highlight:	bonding machine , pcb soldering machine

Hot Bar Soldering Equipment Pulse Heated PCB Soldering Feature

1. According to different products, heating speed can be adjustable

2. Special material welding head, ensure that the product compression on average

3. Equipped with vacuum function, regulate the registration easier

4. Temperature numerical control precision

5. Equipped with digital pressure gauge, can preset pressure range

6. The microcomputer control, precision and stability

7. Programmable curve including preheat and reflow soldering temperature

8. Suitable for all kinds of high density TAB, TCP and FPC, FFC and pressure to PCB solder pressure welding

9. Adopts accurate PID control

10phase Angle instead of the pulse drive Small vibration, low noise and voltage fluctuation

11. Use molybdenum alloy instead of traditional titanium alloy welding head, cooling fast temperature rise, heat transfer coefficient is good, wear-resisting

12. Double four workstation design, high efficie

Machine specifications:

1. machine size: 620 * 720 * 1500 mm

2. Job dimensions: Max120x120mm

3.Machine weight: 110 kg

4.Working pressure: 0.6-0.8 Mpa

5.Power supply: AC220V plus or minus 10%, 50 hz, 2300 w

6.Temperature setting: two Working environment: 10 to 60 ℃, 40% - 95%

7.Welding stress: 1 ~ 20 kg

8.Temperature Settings: RT error + / - 5 ℃ ~ 500 ℃

9.Hot pressing time: 1 ~ 99.9 s

10.Hot-pressing precision: pitch0.2 mm

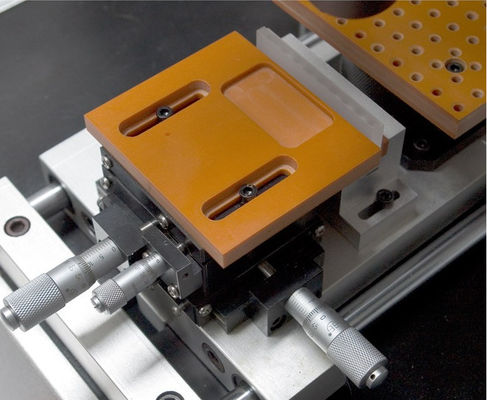

11.Hot pressing head size: MAX 60 x5mm Hot Bar Soldering Equipment Pulse Heated PCB Soldering 0

Our Advantage :

1. Promise day technical support services
2. Limit the handling of complaints, half an hour back to customers
3. Reliable machine maker,we get Experts--15,each one got over six years experience,equipment quality will be satisfying

Our production

Hot Bar Soldering Equipment Pulse Heated PCB Soldering 1

Why us

1. Engineers available to service machinery oversea.	Engineers are available to be sent to freign countries to do machinery training and offer technical support.
2. Mature technique & forerunner to process makes high quality machinery.	As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine Our R&D team continuously upgrade the existing machines to meet the market development trend.
3. Effective customer service. pcb router machine	All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers.
4. One year warranty for the machines except accessories. b router machine	Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.
Our mission:	Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success
Our Vision:	PCB industry to become the world's leading solution providers PCB separator. pcb router machine
