| Color: | White | Vacuum Cleaner: | Upper Or Lower(optional) |
|---|---|---|---|
| Routing Bit: | 0.8/1.2/1.5/1.8/2.0mm | PCB Size: | 320*320mm(standard) |
| PCB Material: | FR1, FR4, MCPCB | Description: | PCB Router Machine |
| Highlight: | automatic router machine,printed circuit board router |
||

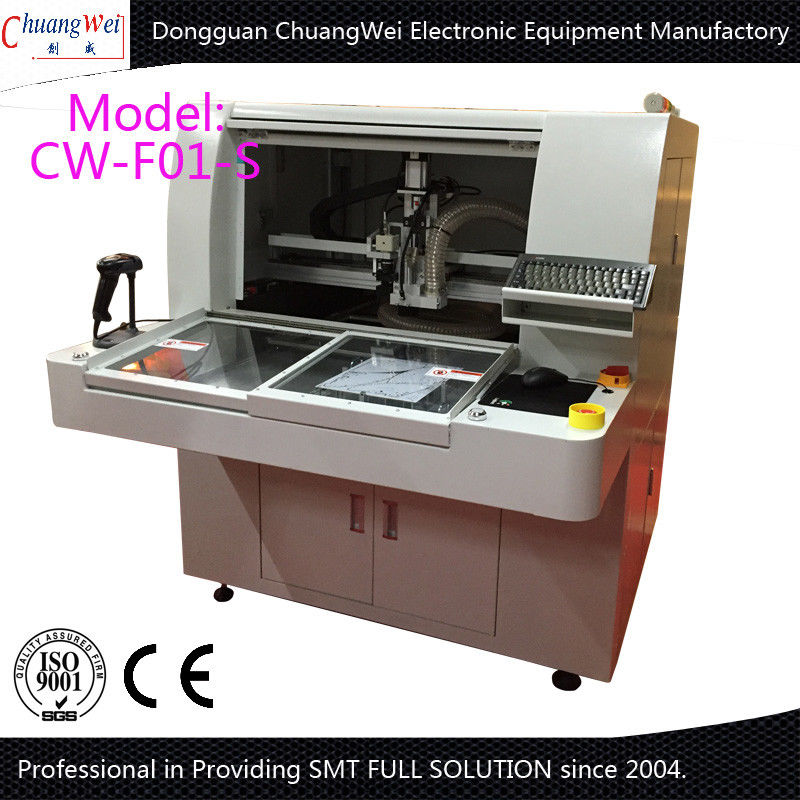

PCB Router Machine for 320*320mm FR1/FR4/MCPCB Boards with Dual Table
Quick and Efficient PCB Singulation
When considering the numerous methods available for PCB singulation, it is difficult to decide which might be the best. At ChuangWei we propose that our PCB routers are the most efficient, and quickest way to singulate PCB's. For stress free depanelization we utilize a router bit which minimizes the stress on components, therefore keeping them intact and working proficiently. The router bit adjustment system will automatically shift up to 5 different depth levels, which will cut down on bit replacement. Router bit cutting speed has a maximum of 50mm per second, while the traveling speed is a maximum of 800mm per second. Our PCB routers also contain a high speed spindle which will sustain precision while speeding up the process. The frame is sure to hold up with precise ball screws employed on an X, Y, Z axis, and be speedy with a spindle motor that creates up to 60,000rpm spins.
Flexible panel designs are easy to deal with through the various cutting patterns available on the routers. A fixture-based dust vacuum removal system utilized from the bottom side assures that there will be no shift or warp during PCB singulation.
Specification:
| Model | CW-F01-S |
| Standard working area | 320*320mm |
| Power | 220V, 4.2KW |
| Manipulator Repeatability | ±0.02mm |
| Resolution | ±0.01mm |
| Board Positioning | Dual workstation with nest fixture or pin fixture |
| Panel Location | Located by tooling holes or edges of PCB |
| Loading | Manual |
| Unloading | Manual |
| Panel Size | 320*320mm(standard) |
| Panel Thickness | 0.5-3.5mm |
| Spindle motor | 0.5kW Morning Star Spindle |
| Tool Change | Manual |
| Dust filtration system | 3KW Vacuum Cleaner |
| Vision system | High resolution CCD video camera |
| Programming | Vision assisted point to point manual teaching |
| Editing Function | Dry run vision assisted / test run mode |
| Machine weight | 500kgs |
| Machine dimension | 113*140*108cm |
