High Speed Cutting PCB Router Equipment with 3KW Vacuum Cleaner

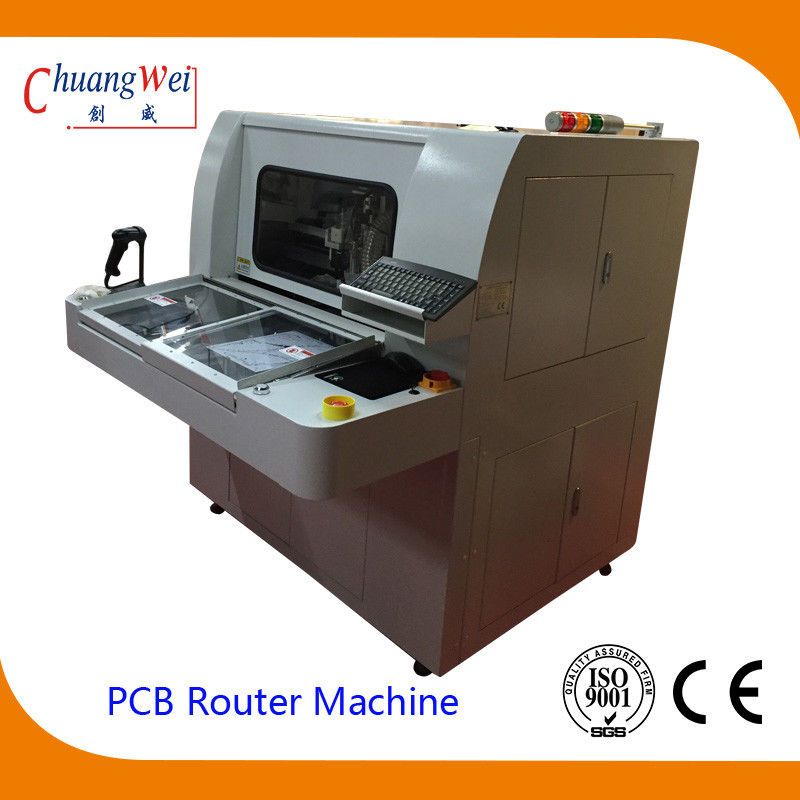

Large Image : High Speed Cutting PCB Router Equipment with 3KW Vacuum Cleaner

Product Details:

Place of Origin:	China
Brand Name:	Chuangwei
Certification:	CE Certificate
Model Number:	CW-F01-S

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	plywood case
Delivery Time:	within 3 work days
Payment Terms:	Western Union, T/T, L/C, D/A
Supply Ability:	1000 set per / year

Contact Now

Detailed Product Description

Warranty:	Free For One Year	Spindle:	KAVO
PCB Size:	320*320mm	PCB:	RF1, FR4, MCPCB
Voltage:	110/220v 50/60Hz	Description:	PCB Router
Highlight:	pcb depaneling router , printed circuit board router

High Speed Cutting PCB Router Equipment with 3KW Vacuum Cleaner Features :

1. Two-slide PCB Separator

2. Low stress

3. Sharp cutting edge

4. Manul loading /unloading

5. High speed cutting by 4 axes control

6. Easy teaching with image processing

Specification:

Model	CW-F01-S
Standard working area	320*320mm
Power	220V, 4.2KW
Manipulator Repeatability	±0.02mm
Resolution	±0.01mm
Board Positioning	Dual workstation with nest fixture or pin fixture
Panel Location	Located by tooling holes or edges of PCB
Loading	Manual
Unloading	Manual
Panel Size	320*320mm(standard)
Panel Thickness	0.5-3.5mm
Spindle motor	KAVO Spindle
Tool Change	Manual
Dust filtration system	3KW Vacuum Cleaner
Vision system	High resolution CCD video camera
Programming	Vision assisted point to point manual teaching
Editing Function	Dry run vision assisted / test run mode
Machine weight	500kgs
Machine dimension	113140108cm

Description

2-way Sliding Exchanger

This work exchanger provides a simultaneously in-and-out working space to limit the idle time, which in turn reaches the utmost output value.

Route Duplication

The user only needs to set two referent points to duplicate a same route in saving programming time.

Routing Bit Sectioning

The user may set a designated distance, and have the routing bit shift-up or -down in order to make a new section of touting bit to cut boards for multiplying the life of the routing bit.

Friendly GUI

Windows XP system and Graphical User Interface (GUI) is adopted, which enables the user to learn and use the program easily. A 10 x zoom-in image is shown on screen for setting all points.

Machine details
