Product Details:
Payment & Shipping Terms:
|
| System: | Automatic Type | Power: | 110 / 220 V |
|---|---|---|---|
| MOQ: | 1 Set | Material For The Blades: | Hight Speed Steel |
| Separation Length: | 460 / 600mm | Supply Ability: | 80 Sets / Month |
| Warranty: | Free For One Year | Name: | Pcb Depaneling |
| Highlight: | V-CUT scoring machine,PCB Cutting Machine |
||

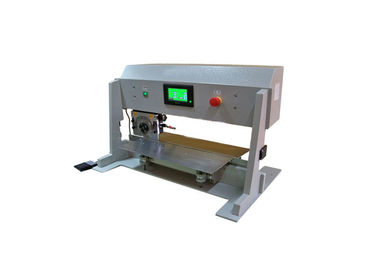

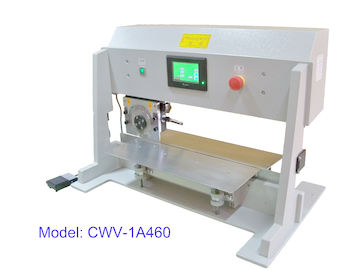

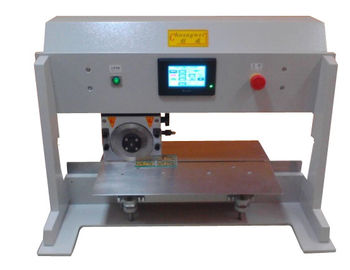

Four Optional Speed Pcb Depaneling With Safe Sensor CWV -1A460
Features :
1 . Board with projected component can be cut precisely
2 . One touch programming of cut length with digital display
3 . Separating speed is adjusted by a rotary knob
4 . Handle Intermittent scoring or cut-outs
5 . Separate v-cut PCB assembly without stress on either PCB or component
6 . Large stainless steel platform on both side of cutting blade prevents board wobble and table height and angle are adjustable
7 . Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out
8 . Optional PCB conveyor belt to remove finished board
Technical parameters :
| Model | CWV-1A |
| Max . PCB singulation length | 460 ( on request custom made ) |
| PCB singulation thickness | 0.6 -3.5 mm |
| PCB singulation feed rate | 100 , 200 , 300 , 500 mm / sec |
| Blade motion | upper circular blade moving automatically |
| Blade motive power operating mode | motor-driven |
| Power supply | 110 / 220 v |
| PCB singulation machine size | 770 * 510 * 450 mm |
| PCB singulation machine weight | 55 kg |
Pictures :
