Product Details:
Payment & Shipping Terms:
|
| MOQ: | 1 Set | Material For The Blades: | High Speed Steel |
|---|---|---|---|
| Use: | Cutting PCBA , FR4 , LED Linght Bar , Alum Board | Supply Ability: | 80 Sets / Month |
| Blades Type: | Two Linear Blades | Max Separation Length: | 450 Mm |
| Highlight: | metal cutter machine,pcb shear cutter |
||

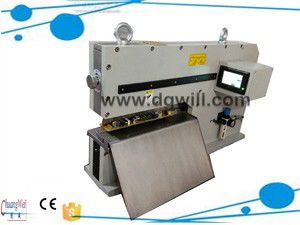

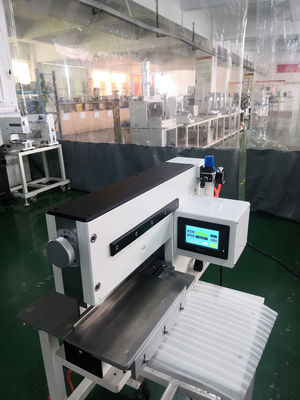

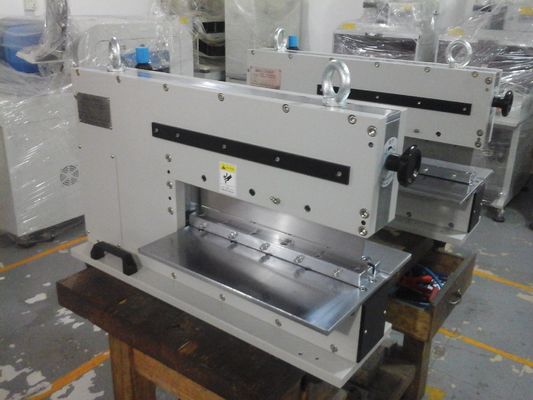

Pcb Separator For Electronics Industry With Linear Blades CWVC-450

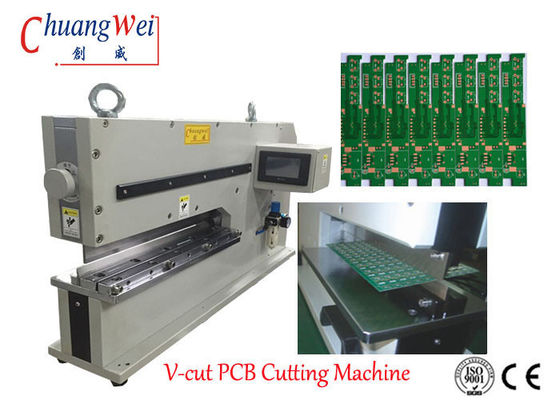

V CUT PCB Separator machine
1 . Easy maintenance and operation
2 . Thin PCB even to 0.3mm can be depaneled safely
3 . Depaneling process without vibrations due to pneumatic drive unit
V-CUT PCB Separator machine specifications
| Model | CWVC-450 |
| Max. PCB depaneling length | 450mm(Can custom made) |
| PCB depaneling thickness | 0.3-3.5mm |
| Voltage and Power | 110V/220V -- 10W |
| PCB depaneling speed | due to operator skilled level |
| working air pressure | 0.5-0.7Mpa |
| PCB depanelizer machine size | 620*230*400mm |
| PCB depanelizer machine weight | 165kg |
V-CUT PCB Separator machine fetures
1 . Pneumatically driven and electromagnetic valve control .
2 . Depaneling process without vibrations due to pneumatic drive unit .
3 . Depaneling PCBs with sensitive SMD, capacitors or thin board even to 0.3 mm can be depaneled safely .
4 . Depaneling operation is that operator stamps the foot pedal to Depanel PCB .
5 . Highest components near the v groove of PCB can be up to 70mm .
6 . The minimum distance is allowed to be 0.5mm between V groove and the electronic components .
7 . Gap for insertion of PCB can be easy to adjust by the adjusting knob in front of the machine .
Our Competitive Advantage :
Pneumatically driven and electric control
The machine is pneumatically driven and electric control . The straight knife type separator machines were designed to separate pre-scored panel boards carefully , without bending or tension stress . Even
sensitive SMD-components like ceramic capacitors will not be damaged by the separate process . Due to the special design of the knives also boards with high components placed close to the edges can be separated safely . Based on a proven method of separating, wedge-shaped knives are used to cut the panels within the groove . This enables boards of less than 1 mm thickness to be separated safely and without creating stress .
V-CUT PCB Separator machine operation video please see below:
http://www.youtube.com/watch?v=zuFZH9KcxZs
http://www.youtube.com/watch?v=PWOYDPsJiUY
http://v.youku.com/v_show/id_XNTk2NzgxNDEy.html
http://v.youku.com/v_show/id_XNTk2NzU4NzA4.htm
