Product Details:
Payment & Shipping Terms:
|
| Warranty: | 12 Months | Sliding Exchanger: | 2 |
|---|---|---|---|
| Spindle: | 60000RPM | Power: | 220V, 4.2KW |
| Weight: | 650kgs | Name: | PCB Router Machine |
| Highlight: | automatic router machine,printed circuit board router |
||

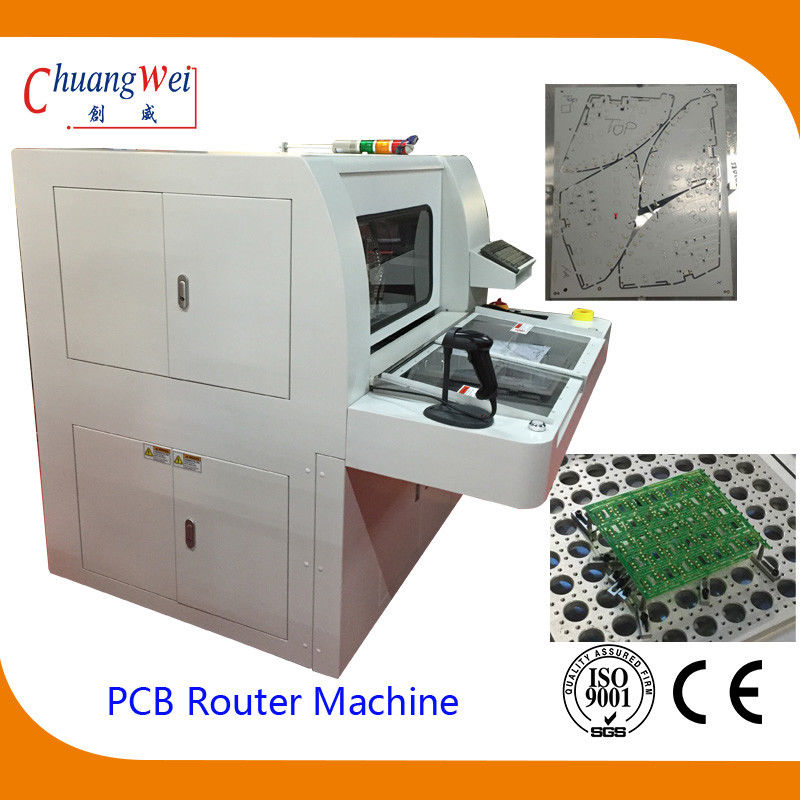

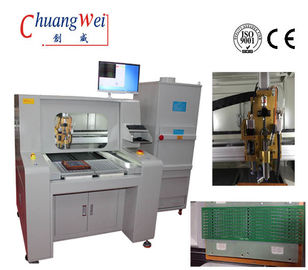

Double Station PCB Router Machine with Auto Routing Bit Checker PCB Router Machine Description 2-way Sliding Exchanger
This work exchanger provides a simultaneously in-and-out working space to limit the idle time, which in turn reaches the utmost output value.
Route Duplication
The user only needs to set two referent points to duplicate a same route in saving programming time.
Routing Bit Sectioning
The user may set a designated distance, and have the routing bit shift-up or -down in order to make a new section of touting bit to cut boards for multiplying the life of the routing bit.
Friendly GUI
Windows XP system and Graphical User Interface (GUI) is adopted, which enables the user to learn and use the program easily. A 10 x zoom-in image is shown on screen for setting all points.
PCB Router Machine Features
1. Manual loading/unloading processing
2. 2-way sliding working exchanger to limit the idle time and simultaneously loading and unloading to reaches the utmost output value.
3. Friendly touch panel with 10X CCD camera to minimize the time of programming
4. Auto fiducial mark point check and cutting route auto compensation to ensure the cutting accuracy
5. Auto router bit check to prevent the bit break incomplete cutting.
PCB Router Machine Specification
| Model | CW-F01-S |
| Standard working area | 320*320mm |
| Power | 220V, 4.2KW |
| Manipulator Repeatability | ±0.02mm |
| Resolution | ±0.01mm |
| Board Positioning | Dual workstation with nest fixture or pin fixture |
| Panel Location | Located by tooling holes or edges of PCB |
| Loading | Manual |
| Unloading | Manual |
| Panel Size | 320*320mm(standard) |
| Panel Thickness | 0.5-3.5mm |
| Spindle motor | KAVO Spindle |
| Tool Change | Manual |
| Dust filtration system | 3KW Vacuum Cleaner |
| Vision system | High resolution CCD video camera |
| Programming | Vision assisted point to point manual teaching |
| Editing Function | Dry run vision assisted / test run mode |
| Machine weight | 500kgs |
| Machine dimension | 113*140*108cm |
PCB Router Machine Routing Bits
(Upper Vacuum Cleaner)Righ-hand specification: ￠0.8, ￠1.0, ￠1.2, ￠1.5, ￠1.8, ￠2.0
(Lower Vacuum Cleaner)Left-hand specification: ￠0.8, ￠1.0, ￠1.2, ￠1.5, ￠1.8, ￠2.0
