| Cutting Length: | Unlimited | Usage: | Cutting Led Panel , Pcb.. |
|---|---|---|---|
| Number Of Blades: | 6 Pieces | Shape Of Blades: | Circle Type |
| Warranty: | Free For One Year | Material For The Blades: | High Speed Steel |
| Highlight: | pcb assembly machine,pcb shear cutter |
||
Multi-blades PCB Separator Separation LED Lighting Aluminium PCB Board
Pcb separator advantages :
1. Separates large numbers of PCBs without fatigue of the operator
2. Motor driven
3. The PCB is feed between the circular blades where it is seized, transported and separated
4. Different speeds can be selected
Specification for pcb separator:

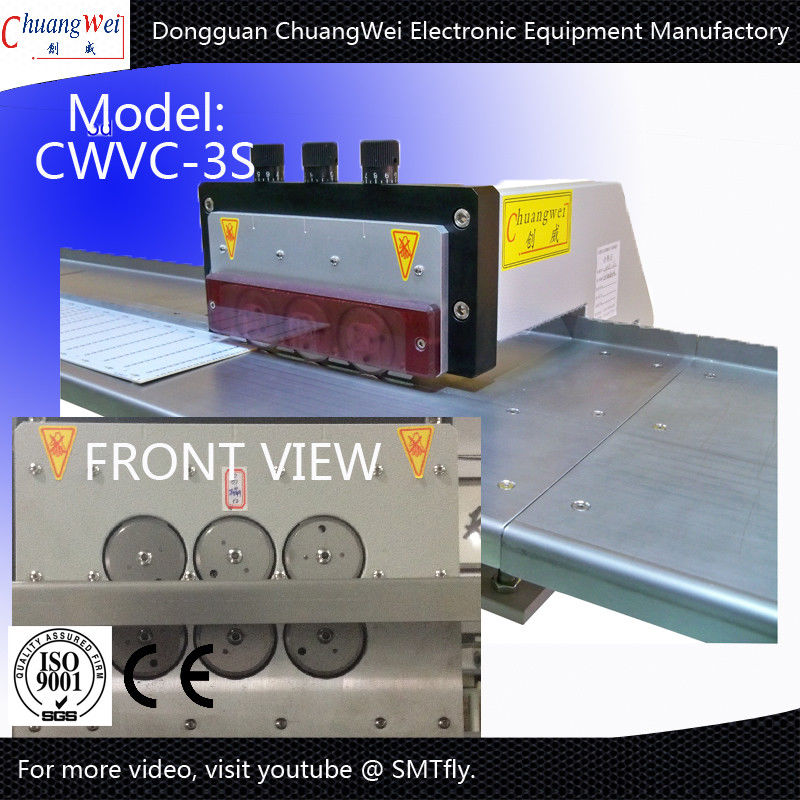

| Model | CWVC-3S |
| machine size | 40*40*34 cm |
| platform size | 150*27*20 cm |
| mininze speed | 0-400mm/s |
| cutting thickness | 1.0-3.5mm |
| Max depaneling length | unlimited |
| Machine weight | 45 kg |
| use |
Features:
1 . It is electric control,the straight knife type separator machines were designed to separate pre-scored panel boards carefully, without bending or tension stress . Even sensitive SMD-components like ceramic capacitors will not be damaged by the separate process . Due the special design of the knives also boards with high components placed closed to the edages can be separated safely .
2 . No vibration during the process to prevent damage to precise PCB
3 . Gap for insertion of the board can simply be adjusted by means of the adjusting knob , low friction design is applied
4 . Lower knife height adjustable , no thin plates are required after re-sharpening the cutting blade
5 . It is safty .the plastic shell can protect the operators .
6 . The blades can be regrind .
How to replace the blades:
1. Loosen screws of plastic shell
2. Remove the plastic shell
3. Loosen 4 screws
4. Remove the metal plate
5. Replace the old blades with new ones
