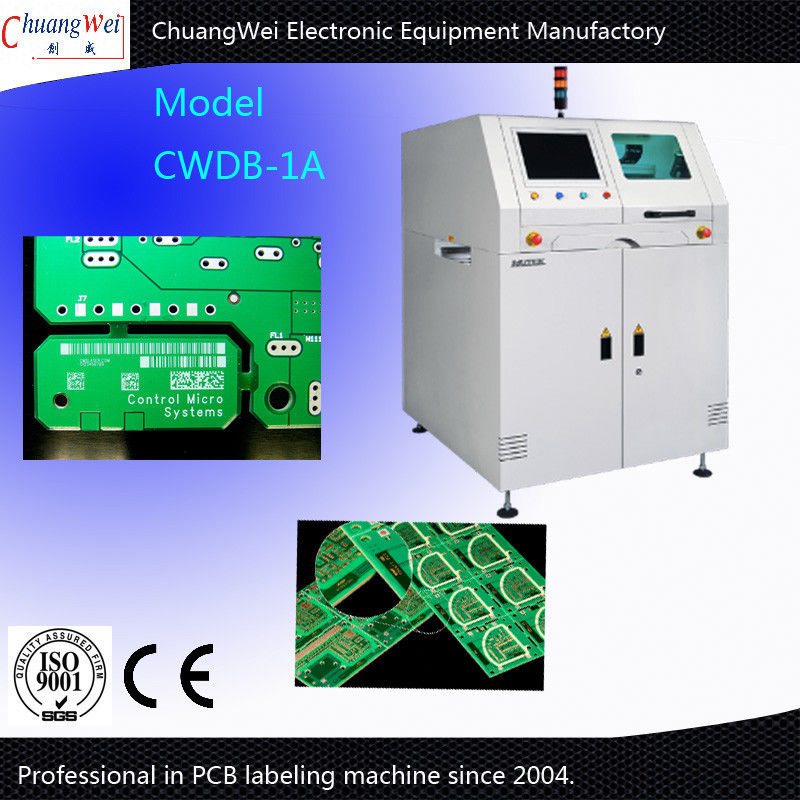

PCB Labeling Machine Apply Labels on Top of Components A5 Motor Series
Description

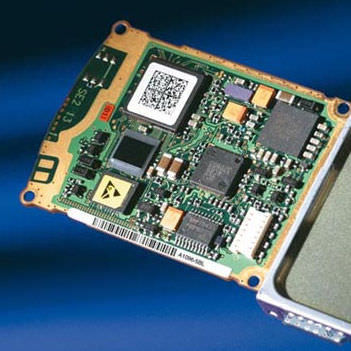

This unit is used to print, pick and apply
labels onto bare PCBs or on top of
components.
Details and Features
Rigid machine frame with large access door
Integrated 600dpi Brady printer
Codesoft user licence
Slide out mechanism (rear side) for easy and fast label and ribbon replacement
Label placement rotation of 0° or 90°
Vacuum sensing of label from pick-up to placement
Scanner for value verification after printing
Industrial PC & 17” LCD monitor
User friendly software
ESD edge belt segment mounted on X-Y table
Automatic width adjustment conveyor
PCB side clamping
Active PCB support
Short product change-over time
Selectable by-pass operation
SMEMA compatible
Features:
1. Transparent cover design, emergency button could avoid accident to ensure safe operating.
2. Flexible application can pick off the production or assembly line production, production site layout is simple.
3. Powerful, has fault alarm function, production counting function, parameter setting protection function, convenient production and management.
4. Intelligent control, automatic correction MARK point positioning systems, mobile real‐time display and analog path trace route,display a glance, automatic alignment correction, higher labeling accuracy.
5. Simple adjustment, adjust label position freely for 10 setting positions. It is simple to change different PCBs to save time.
6. Configuring high‐pixel CCD zoom lens, an auxiliary program Teach‐camera editing function, higher precision and more accurate,clearer images. Easy to edit & modify block programs and single‐step program.
Characteristics
1. Using two‐dimensional platform and visual inspect system instantly take, arbitrary coordinate movement to realize high speed automatic code.Code were varied, qr code, one‐dimension code, can be Numbers, letters, special symbols, etc.
2. The machine conforms to the IEC standard, the complete closed to complete a homework assignment, availability.
3. 17 inch computer monitor, operator could observe the PCB print status at any time.Includes loader and unloader machine, realize automatic PCB labeling, could print QR code, one‐dimensional code, numbers, letters, special symbols and other species.
Specification parameter:
|
CCD |
F‐130F series industrial camera |
|
lens |
Computar EX2C |
|
laser head |
import from japan |
|
guide rail |
TBI import grinding leadscrew X,Y two each,X450mm,Y520mm |
|
servo motor |
A5 motor series |
|
I/O control card |
ADLINK PCI‐9074 |
|
motion control card |
ADLINK PCI‐9074 |
|
adapter card |
BOXIN‐BO1 |
|
Static Eliminator |
STATIC‐ST401A series |
|
Industrial control host |
Industrial control host(RMC‐8404/6113LP4/300ATX/8651VNA/P4 |
|
Display |
DEL liquid crystal LCD17" displayer and Logitech mouse/Duble Swallow mouse |
|
2.software |
|
|
control system |
WINdowsxp |
|
operation interface |
GUI |
|
program |
online |
|
visual system |
Pixel computational precision CCD visual orientation correction system( |
|
control software |
F1.0.2 official |
|
Dimension |
600mm*600mm*1180mm |
|
weight |
100kg |
|
Foot adjustable height |
60～110mm |
|
Manipulator |
|
|
motor type |
Panasonic A5 motor series |
|
control motor repeat accuracy |
0.01mm |
|
The axis maximum working range |
400mm*400mm |
|
Work station |
|
|
transmitt |
Workbench automatic feeder,leadscrew transmission |
|
max size |
400mm*400mm |
|
edit mode |
online programming |
|
Program storage |
select the storage location According to the need |
|
collocate program CCD |
computar Series high pixel color CCD |
|
Operation Monitors |
|
|
tri‐color light |
High brightness trichromatic lamp monitoring machine of all kinds of |
|
The motor overheat detection |
Overheating, overload, low voltage protection function |
|
Servo overload detection |
With overload, circuit is normal and low voltage protection function |
|
print counter |
pcb type, print numbers,diverse counting way. |
|
Machine error record |
software automatic memory machine all alarm record |
|
Ⅲ.Accuracy |
|
|
Laser head position accuracy |
0.01mm |
|
print precision |
0.01mm |
|
Ⅳ.Safety |
|
|
scope of work protector |
Use all‐direction seal protection way |
|
door interlock protection sensors |
Before and after the safety door safety switch induction(optional) |
operating principle:
Core principle: sensors detect the product after, back to the signal to the labeling control system, the signal after the PLC processing, at the appropriate time to send out the tag attached to the product set position, product flows through the device, tags coating is firm, a label attached
operating process:
Operation: put a PCB (could connect production line) ‐‐> PCB feeding(automatically) ‐‐> product correction (automatically) ‐‐>
product testing (automatically) ‐ >Labeling (automatically) ‐‐> finish PCBs collection
Labeling processng
step 1. pick up labels according to points
Step 2. CCD correction Angle according to label position
step 3. label to the correct position
Automatic assembly implementation and processing
supply material method:
our factory supply label,three ways of pcb feeding:
(1)connect production line (2)loader/unloader machine (3)Manual
Composition and parameters
Hardware:
|
Screw Guide |
HWIN import linear Screw Guide |
|
leadscrew |
HWIN import grinding leadscrew |
|
Motor |
PansomicMINS‐A5T/YIXINservo drive |
|
motion control card |
HFC PCI9014 |
|
adapter card |
HT‐B01 |
|
LCD |
Software:
|
control system |
Independent R&D servo drive system |
|
Program |
online |
CE approval
