Product Details:
Payment & Shipping Terms:
|
| Material: | High Speed Steel | Cutting Length: | 480 Mm |
|---|---|---|---|
| Warranty: | Free For One Year | Shipping Way: | FOB / EXW |

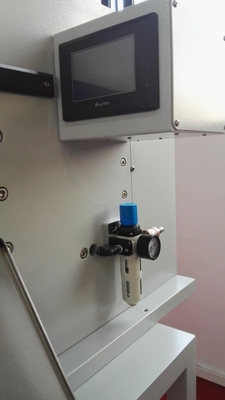

| Blades Type: | Two Linear Blades | Advantage: | With LCD Display |
| Highlight: | pcb laser cutting machine,laser pcb depaneling machine |
||

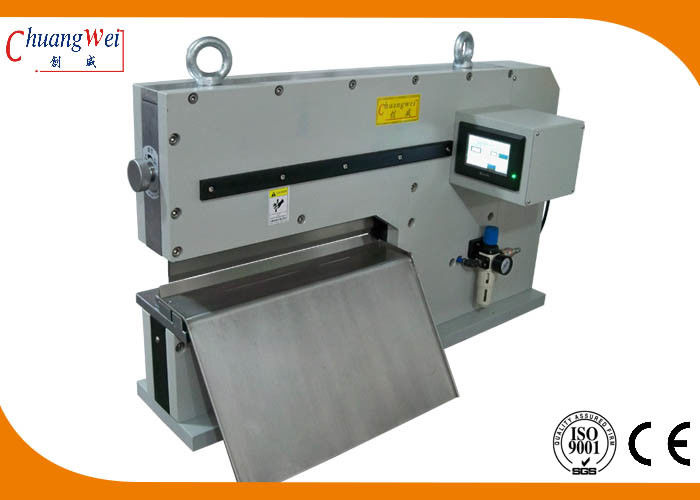

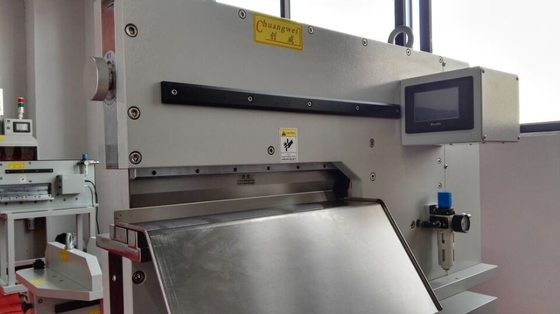

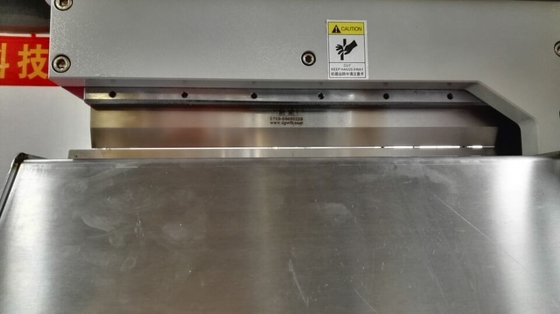

Two Sharp Linear Blades PCB Depaneling Machine for Aluminium Substrate CWVC-450
Specification :

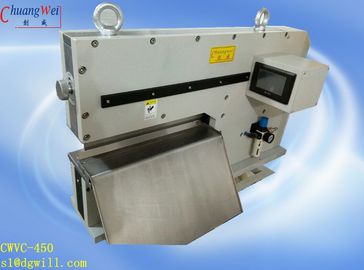

| Model | CWVC-450 |
| The Longest Minimize: | 450 mm |
| Size: | 980×450×380 mm |
| Minimize thickness | 1.0-3.5 mm |
| Machine Weight : | 300 kg |
| Use | Cutting PCBA , FR4 .Metal board , Alum Board , Etc |
process a lot of automobile suppliers use exclusively the depaneling machines of the NTM series for the separation of their prescored panel boards . The machines CWVC-2L / CWVC-450 / CWVC-480 / CWVC-330 / CWVC-400 / CWVC-200 use an infinitely variable sectional cut to depanel prescored panel boards in a gentle and clean way by avoiding damage to SMD components placed directly at the edges of the boards .
Advantages :
1. The cutting rate is one segmentation for one second , controlled by pneumatic pedal switch .
2. The starting of the cutting set is for passive, so that the cutting tangent and position is under secure control . With little stress when cutting , there will no solder crack .
3. With cutting of nonroller (circular knife , straight knife ) type , there is no dust , no motor drive , and no carbon powder pollution .
4. With no-rubbing type cutting , there is no metal residue .
5. The blade can be used 600000/times without power supply , avoiding the loss and change of electrical products .
6. The machine uses 5-7kg air compressor without specific cutting place , and it is maintained by wiping its appearance with the anti-rust oil .
Our service
|
1.Engineers available to service machinery oversea. |
Engineers are available to be sent to freign countries to do machinery training and offer technical support. |
|
2.Mature technique & forerunner to process makes high quality machinery. |
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine Our R&D team continuously upgrade the existing machines to meet the market development trend. |
|
3.Effective customer service. pcb router machine |
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers. |
|
4.One year warranty for the machines except accessories. b router machine |
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge. |
|
Our mission: |
Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success |
|
Our Vision: |
PCB industry to become the world's leading solution providers PCB separator. pcb router machine |
Our production flow
