High Speed PCB Separator CNC Router Cutting PCB Stree Free,PCB Router Depanling

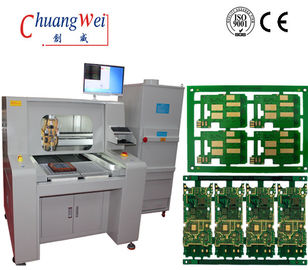

Large Image : High Speed PCB Separator CNC Router Cutting PCB Stree Free,PCB Router Depanling

Product Details:

Place of Origin:	China
Brand Name:	Chuangwei PCB Separator
Certification:	CE and GMC
Model Number:	CW-F01 PCB Separator

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	plywood case
Delivery Time:	5-7 days after receive the payment
Payment Terms:	T/T, Western Union ,Credit Card ,Cash
Supply Ability:	15 Sets / Month

Contact Now

Detailed Product Description

MOQ:	1 Set	Shipping Way:	EXW / FOB
Delivery Time:	5-7 Work Days	Precision Of Cutting:	0.01mm
Spindle:	50000 Rpm/min	Positioning Repeatability:	0.001mm
Highlight:	PCB Cutting Shear , PCB separators , PCB Separator Stree Free

High Speed PCB Separator CNC Router Cutting PCB Stree Free

I. Hardware

SPINDLE Morning Star spindle and inverter
CCD:Sony 520 line industrial cameras
LENS:Computar EX2C
Screw:TBI Precision ground ball screw imports
Guide:HIWIN widening Imported linear guide rail
MOTOR:JiaBao LCF Series
I/O CONTRONL CARD: HFC PCI-9074
DRIVER CONTRONL CARD: HFC PCI-9074
I/O CARD:PCI-9074-64pcs/-38pcs
Static cleanup:STATIC-ST401A Series
Computer:RMC-8401/6113LP4/300ATX/8651VNA/P4 2.8G 2CPU(S)/1G DDR/80G)
Machine interface: AOC LCD17",Logitech mouse

2. software

Control system:Windows XP Professional (Service3,v.3244)
Operation GUI:Chinese Windows XP
Program edit:Inline
Vision system:CCD AOTU offset
Control system : F 1.0.2 version

3.Performance Parameters

Dimensions(W*D*H) : 1220mm*1450mm*1420mm
Weight : 550KG
Height offset : 60~110mm
Motor type : JiaBao series
Positioning repeatability : 0.001mm
Axis working area(max) : 680mm*360mm*50mm
PCB fixation : standard,specialization
PCB loading/unloading : manual

The FA & Equipment BU provides SMT processing equipment , semiconductor processing equipment , optical communication products , UV plastic packaging, welding process equipment , and a complete set of customized services , from development , to design , to manufacturing , in response to customer demand.

Package for PCB CNC Router Machine

High Speed PCB Separator CNC Router Cutting PCB Stree Free,PCB Router Depanling 0

More information welcome to contact us :

Email: s5@smtfly.com or sales@dgwill.com

Wechat/Whatsapp:+86 13684904990
