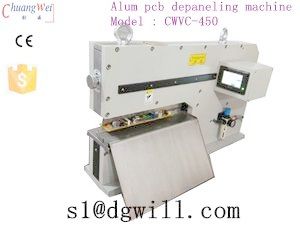

Durable Pneumatic PCB Depanelizer Machine Circular blade moving

Large Image : Durable Pneumatic PCB Depanelizer Machine Circular blade moving

Product Details:

Place of Origin:	China
Brand Name:	Chuangwei
Certification:	CE certificate
Model Number:	CWVC-450

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	plywood case
Delivery Time:	5 work days
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	50 sets / month

Contact Now

Detailed Product Description

Material:	High Speed Steel	Machine Size:	960×425×350mm
Cutting Length:	450 Mm	Type:	Pneumatic Type
Shipping Way:	FOB / EXW	Machine Weight:	200 Kg
Highlight:	PCB depanelization machine , V-CUT scoring machine

Durable Pneumatic PCB Depanelizer Machine Circular blade moving

Specification :

Model	CWVC-450
Max pcb cutting length	450 mm
Machine Size	960×425×350mm
Cutting thickness	1.0-3.5mm
Machine weight	200 kg

Features:

1. Separates boards up to 3.5mm thick
2. Shears boards safely with parts as close as 0.5mm to the score line,including ceramic capacitors
3. Operator foolproof! Panels cannot be inserted into the knives except on the score line
4. Pneumatically driven
5. Handles high components up to70mm
6. Bow waves that can occur with round knives are avoided
7. Easy adjusting of distance between knives
8. Independent lab tests show less than 200 microstrains of stress measuring compression and tension.
9. Has capacity counter function
