Product Details:
Payment & Shipping Terms:
|
| Cutting Length: | Unlimited | Material: | High Speed Steel |
|---|---|---|---|
| Number Of Blades: | 6 Pieces | Shape Of Blades: | Circle Type |
| Warranty: | Free For One Year | Establish Year: | 1999 |
| Highlight: | PCB depaneling,PCB separators,V Cut PCB Electrostatic Separator |
||

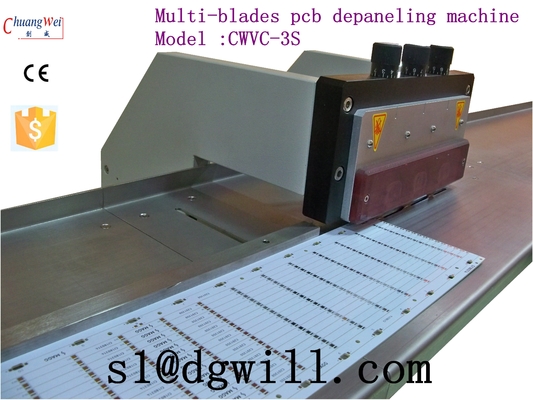

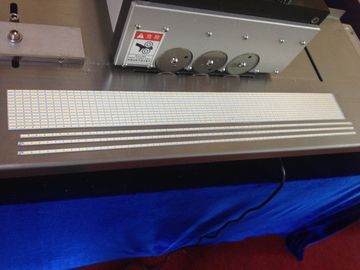

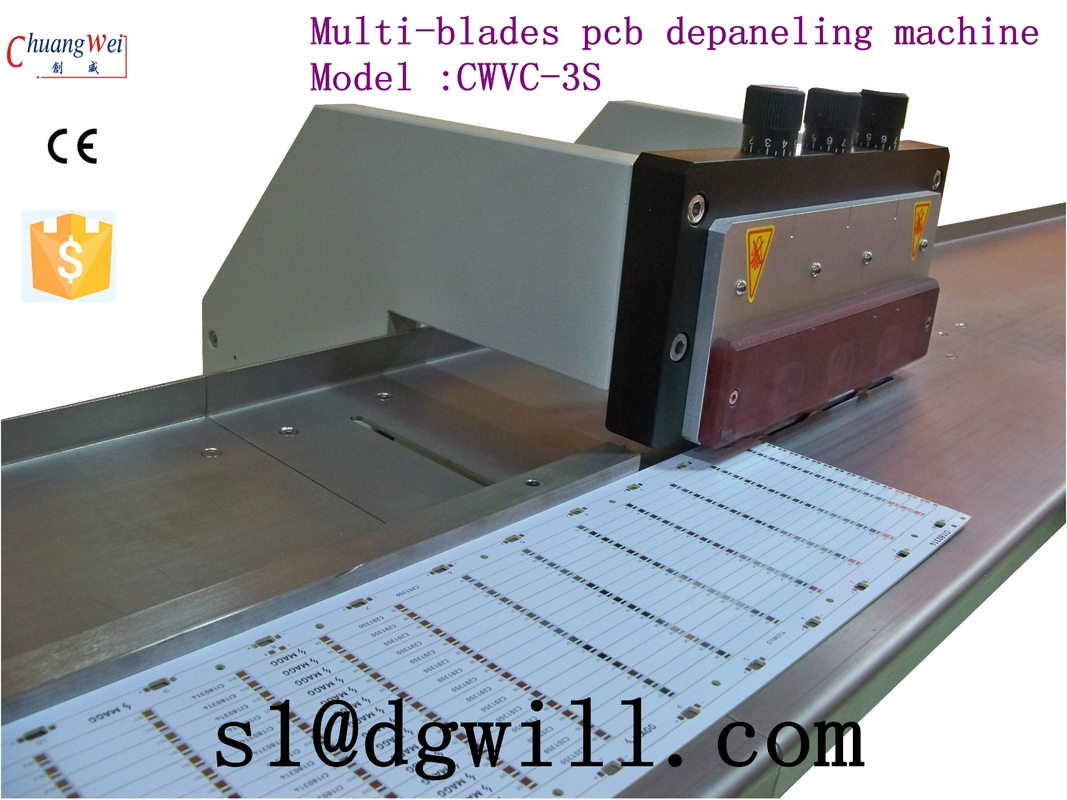

V-cut PCB Electrostatic Separator High Speed Steel with Multi-blade
Specification for pcb separator:
| Model | CWVC-3S |
| machine size | 40*40*34 cm |
| platform size | 150*27*20 cm |
| mininze speed | 0-400mm/s |
| cutting thickness | 1.0-3.5mm |
| Max cutting length | unlimited |
| Machine weight | 45 kg |
| use |
Features:
1 . It is electric control,the straight knife type separator machines were designed to separate pre-scored panel boards carefully, without bending or tension stress . Even sensitive SMD-components like ceramic capacitors will not be damaged by the separate process . Due the special design of the knives also boards with high components placed closed to the edages can be separated safely .
2 . No vibration during the process to prevent damage to precise PCB
3 . Gap for insertion of the board can simply be adjusted by means of the adjusting knob , low friction design is applied
4 . Lower knife height adjustable , no thin plates are required after re-sharpening the cutting blade
5 . Operation and maintenance can be done also by unskilled personnel
