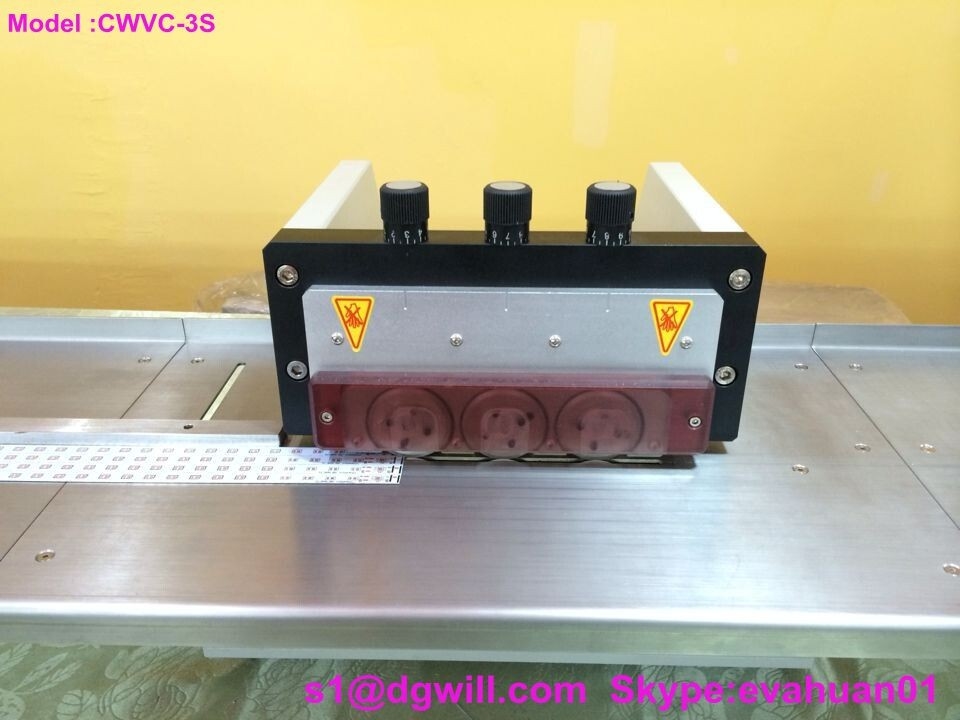

LED Lighting PCB Separator Separation Aluminium Board with Multi-blade

LED Lighting Pcb Separator Separation Aluminium Board With Multi-bladeSuitable for cutting:

Cutting the aluminium base board of 1.0-3.5 mm thickness , about the special
type plate , please leave a message to the email s1@dgwill.com
safe pcba separator for led strips , aluminum base board , fr4 , fiber glass etc .

Product  / Features:

1 . This machine applies unique multi sections cutting, the cutting is to be finished

by 6 pieces round blade .

2 . Working process is pretty smooth, due multi sections cutting .

3 . There won`t be any deviation when cutting along the v-cut slot , even the v-cut

slot is shallow .

4 . The blade made by high speed steel imported from Sweden , which prolonged the

life of the blade .

5 . Precise adjustment of up and down blade .

Specification :


Platform : 1.5 M /2.4 M length
Machine Size :   40*40*34 cm
The Longest Minimize : No limited
Minimize Speed :   0-400mm/s
Minimize thickness :  1.0-3.5mm
Machine Weight :  45Kg

Please note:

Round knives will often be sufficient for separating uncomplicated panels or cutting off margin waste . However , for high-grade boards with components right up to the dividing line, better quality can be achieved if the separation is carried out simultaneously with linear knives along the whole length of the board ( e.g. CWVC-2L  CWVC-450  CWVC-3 ) .
