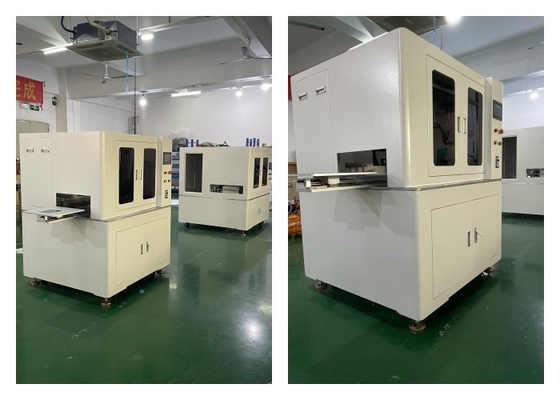

50HZ V-Cut PCB Separator 0.5-0.8Mpa Air Pressure With Linear Blade / Circluar Blades

Product Description:

The V-Cut PCB Separator is a type of inline PCBA automatic depaneling machine specially designed for depaneling printed circuit boards. Its blades can be of either linear or circular type, and the separator can be used for both Hay Cutter and Multi Cutter purposes. This advanced machine is equipped with a 1250(1560)mm×800mm×1295mm dimension which makes it the perfect choice for PCB depaneling. The V-Cut PCB Separator is also known for its high accuracy and reliability, making it an ideal choice for PCB assembly. With a packaging weight of 300kgs, it offers excellent performance, and is the perfect choice for multi-blade PCB depaneling applications.



Features:

• Product Name: V-Cut PCB Separator
• Machine Color: White
• Name: V-Cut PCB Separator
• Blades Number: Depend On PCB
• V-cut Angel: >40°
• Blade dimension: Linear Blade Or Circluar Blades
• Multi-blade PCB Depaneling Machine
• PCB Online V-cut Depaneling Equipment
• Multi-blade PCB Depaneling Machine



Technical Parameters:

Name	V-Cut PCB Separator
Features	Blade Set Can Be Quickly Changed.
Packaging Weight	300kgs
Driven Mode	Stepping / Servo Motor(optional)
Machine Color	White
Blade dimension	Linear Blade Or Circluar Blades
Cutting Speed	300-500/s
Dimension	1250(1560)mm×800mm×1295mm
Power Supply	220/110V,50HZ
Type	Inline PCBA Automatic Depaneling Machine, hay cutter PCB Separator, hay cutter PCB Depaneling Machine, linear hay cutter PCB Separator, multi cutter PCB Separator, V-Cut PCB Separator



Applications:

ChuangWei CWVC-5 V-Cut PCB Separator is a kind of Hay Cutter / Multi Cutter / V Cut PCB Separator with the brand name of ChuangWei. It is certified by CE and the minimum order quantity is 1 set. The price is negotiable and the packaging details is wooden case. The delivery time is 8-15 days after payment. The supply ability is 30sets/month. The blade material is high speed steel and the power supply is 220/110V,50HZ. The air pressure is 0.5-0.8Mpa. It is an inline PCBA Automatic Depaneling Machine, PCB Online V-cut Depaneling Equipment, pcb depaneling machine. It is an ideal tool for separating and cutting thick alumina and FR-4 PCB boards. It is especially suitable for the online automatic separation of PCBA board and the cutting of V-shaped groove. Its features includes high precision, high efficiency and good stability.



Customization:

Are you looking for a reliable V Cut PCB Separator? Look no further! ChuangWei's CWVC-5 is the perfect solution for you. It is CE certified, and the minimum order quantity is 1Set. The price is negotiable depending on your requirements. It comes with wooden case packaging, and the delivery time is 8-15 days after payment. We have a supply ability of 30sets/month. This V Cut PCB Separator is powered by air pressure of 0.5-0.8Mpa and it can cut PCB width of up to 300mm (customizable). It is driven by either a stepping motor or servo motor (optional). The packaging weight is 300kgs and the blade dimension is either linear blade or circular blade.



Packing and Shipping:

The V-Cut PCB Separator will be packaged and shipped in the following manner:

• The separator will be securely packaged in a corrugated cardboard box.
• The box will be sealed with heavy-duty adhesive tape.
• The separator will be cushioned with foam padding for extra protection.
• A tracking number will be provided for the shipment.



FAQ:

Q1: What is the brand name, model number, and place of origin for the V-Cut PCB Separator?

A1: The brand name is ChuangWei, the model number is CWVC-5, and the place of origin is China.

Q2: Does the V-Cut PCB Separator have any certifications?

A2: Yes, the V-Cut PCB Separator is certified with CE.

Q3: What is the minimum order quantity for the V-Cut PCB Separator?

A3: The minimum order quantity for the V-Cut PCB Separator is 1Set.

Q4: How is the V-Cut PCB Separator packaged?

A4: The V-Cut PCB Separator is packaged in a wooden case.

Q5: What is the delivery time and supply ability for the V-Cut PCB Separator?

A5: The delivery time for the V-Cut PCB Separator is 8-15 days after payment, and the supply ability is 30sets/month.
