Product Details:
Payment & Shipping Terms:
|
| Control System: | Software Controlled | Operating Environment: | Friendly Environment |
|---|---|---|---|
| Extraordinary Cut Quality Holding Tolerances: | As Small As 50 Microns | Laser: | Optowave |
| Cutting Material: | Various Material | Safety Protection: | High Safety Protection |
| Function: | Depaneling FR4 / FPC | Advantages: | Auto Vision Positioning / Excellent Cut Finish |
| Highlight: | 50 Microns Laser Depaneling Machine,Auto Vision Positioning Laser Depaneling Machine,300x300x1 Laser PCB Depaneling Machine |
||

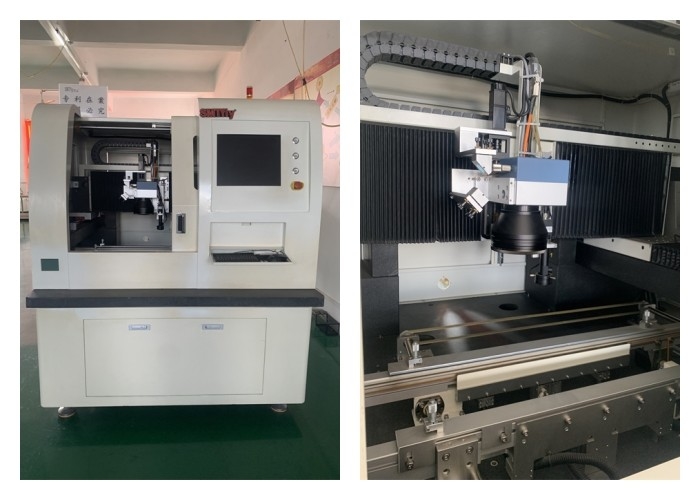

The Laser Depaneling Machine is an innovative online or offline PCB laser depaneling equipment with extraordinary cut quality holding tolerances down to as small as 50 microns. It features a powerful Optowave laser with a wavelength of 355nm and laser power of 10W / 12W / 15W / 18W 30KHz. This advanced pcb depanelizer provides fast, accurate and reliable depaneling results with minimal thermal damage to the components. It is suitable for a wide range of applications such as electronic product depaneling, PCB cutting, PCB singulation, and many other related projects. With its superior performance and unique features, the Laser Depaneling Machine is the ideal solution for all PCB depaneling needs.
| Parameter | Specification |
|---|---|
| Name | Laser Depaneling Machine |
| Laser | Optowave |
| Laser Power | 10W / 12W / 15W / 18W 30KHz |
| Max. Working Area (X x Y x Z) | 300x300x11 Mm, 400mmX300mm(Customizable) |
| Cutting Depth | High Depth |
| Cutting Accuracy | High Accuracy,± 25 μm (1 Mil) |
| Function | Depaneling FR4 / FPC |
| Operating Environment | Friendly Environment |
| Cutting Edge | Smooth Edge |
| Voltage | 220V 380V |
Chuangwei is a famous brand of online or offline PCB laser depaneling machine, laser pcb depaneling machine, pcb depanelizer, pcb depaneling. It is certified with CE Certificate, and the minimum order quantity is 1 Set. The price of the machine is negotiable, and it is packed in plywood case. The delivery time is 10 days, and there are payment terms of T/T, Western Union, and L/C. The supply ability is 260 sets per month. It has high safety protection, and the cutting material is various material. It has high cutting accuracy, ± 25 μm (1 Mil), and extraordinary cut quality holding tolerances as small as 50 microns. The function of the machine is depaneling FR4 / FPC.
Chuangwei offers customized online or offline PCB laser depaneling machine. Our online or offline PCB laser depaneling machine is CE certified and has a minimum order quantity of 1 set. The price is negotiable and it will be packed in a plywood case. Delivery time is 10 days and payment terms are T/T, Western Union and L/C. We can supply 260 sets per month. The control system is software controlled and it can achieve a large cutting area with high speed of 2500mm/s max and high accuracy of ± 25 μm (1 Mil). It also provides high safety protection. We provide pcb depanelizer for your best laser depaneling experience.
Laser Depaneling Machine is delivered in a custom-made box for maximum protection. The box is designed to keep the machine safe from external damage during shipping and transport. Inside the package, the machine is further protected by foam padding and other protective materials.
The package is shipped directly to the customer's specified address or delivery point. The customer is responsible for any additional costs incurred due to customs clearance or other processes.
We offer a variety of shipping methods, including air, sea, express and courier services. Depending on the customer’s needs, we can provide the most suitable shipping solution for them.
If you have any questions or enquiries about the packaging and shipping of Laser Depaneling Machine, please do not hesitate to contact us.
