Product Details:
Payment & Shipping Terms:
|
| Packaging Detail: | Plywooden Case | Cutting Length: | Unlimited |
|---|---|---|---|
| Delivery Detail: | Within 3 Days | Warranty: | 1 Year |
| Establish Year: | 1999 | Model: | CWVC-3S |
| Highlight: | pcb shear cutter,metal cutter machine |
||

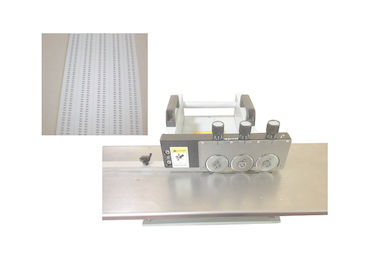

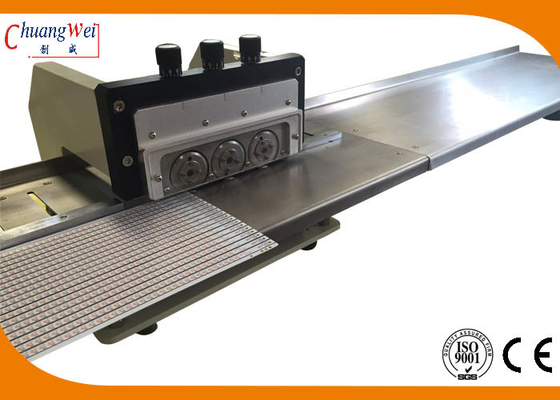

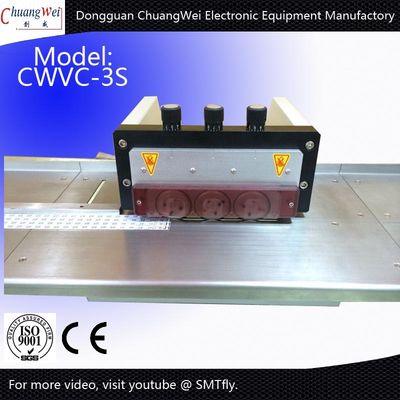

LED Depanel Electric Control with 6 Blades PCB Cut Machine,CWVC-3S Specification
It is electric control,the straight knife type separator machines were designed to separate pre-scored panel boards carefully, without bending or tension stress. Even sensitive SMD-components like ceramic capacitors will not be damaged by the separate process.
Due the special design of the knives also boards with high components placed closed to
the edages can be separated safely.
|
Name |
PCB Depaneling Machine |
|
Model |
CWVC-3S |
|
Weight |
50kg |
|
Cutting speed |
0-400mm/s |
|
Cutting thickness |
0.8-3.0mm |
|
Cutting length |
Unlimited |
|
Voltage |
220V |
|
Power |
40W |
|
Main engine size |
1200*620*330mm |
|
The whole machine size |
2400*620*330mm |
The features of PCB Depaneling Machine
1. This machine applies unique multi sections cutting, the cutting is to be finished
by 6 pieces round blade.
2. Working process is pretty smooth, due multi sections cutting.
3. There won`t be any deviation when cutting along the v-cut slot, even the v-cut
slot is shallow.
4. The blade made by high speed steel imported from Sweden, which prolonged the
life of the blade.
5. Precise adjustment of up and down blade.
