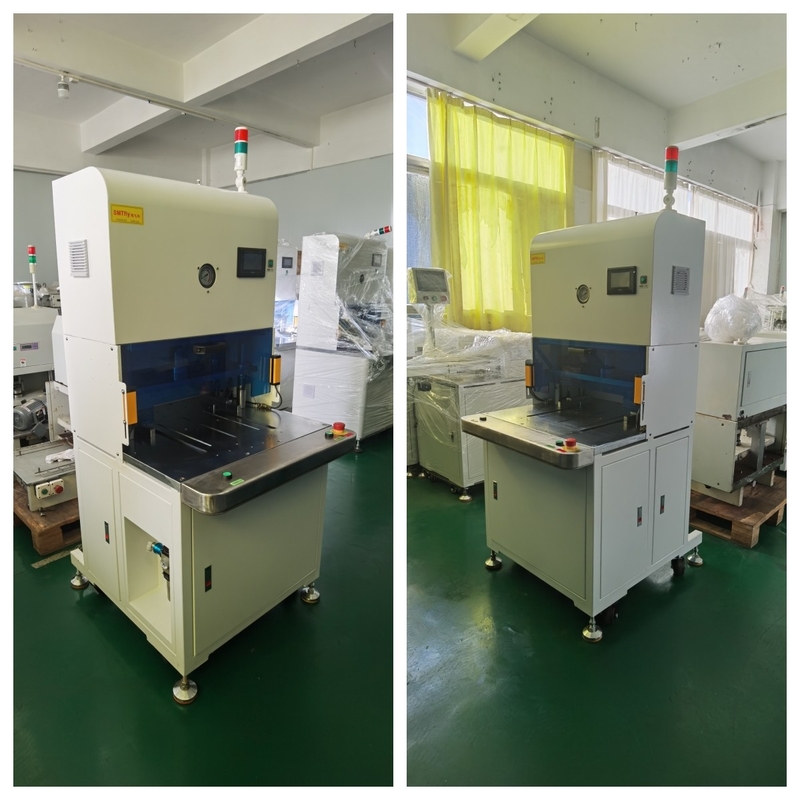

1000pcs/Min PCB Punching Machine With Max. Sheet Size 400mm*400mm

Product Description:

A PCB punching machine for FPC (Flexible Printed Circuit) is an indispensable piece of equipment used in the electronics industry to divide separate FPCs from a larger panel or array. It uses a punching action to cut through the materials linking every FPCs, such as a slim coating of polyester or polyimide film.

The PCB punching machine for FPC can be programmed to cutting the FPCs with precision and able to cope with all various board sizes and forms. This device is mainly employed in big production targets, where manual punching will be time-consuming and ineffective.

Using a PCB punching machine for FPC has many benefits compared with traditional methods. It can cut through materials more rapidly and with more accuracy, reducing the chance of damages to the FPCs. It can also be used to cut complicated shapes and forms which are hard to achieve with manual punching. Additionally, it gets rid of the necessity for lengthy and costly tooling changes, as the device can be reprogrammed for different board sizes and figures.

All in all, PCB punching machines for FPC are a significant asset for the electronics industry, permitting for faster, more efficient, and more exact FPC division.

Features:

• Product Name: PCB Punching Machine
• Min. Pitch: 2.5mm
• Max. Punching Force: 200KN
• Max. Punching Thickness: 2.5mm
• Machine Size: 1400mm*1000mm*1700mm
• Die: Customize

Technical Parameters:

Applications:

PCB Punch Depaneling Machine is a reliable and powerful device developed by Chuangwei, model CWPL. It is certified with CE and certificate of registion, and each order requires a minimum of 1 set. The price is negotiable and packages in plywooden cases. The delivery time is 3 days after receiving payment, and the supply ability is 300 sets per month. The maximum sheet size is 400mm*400mm, and the maximum stroke is 50mm. The power supply is AC220V/11V,50HZ, with a repeatability accuracy of ±0.05mm and a positioning accuracy of ±0.1mm.

PCB Punch Depaneling Machine can be used in various scenarios, such as the production of printed circuit boards (PCBs). It can be used to quickly and accurately cut and separate components from a PCB board, which is essential for the production and assembly of PCB boards. It is also widely used in the manufacturing of electronic products. It is an ideal tool for the production of precision electronic components.

The PCB Punch Depaneling Machine from Chuangwei offers the highest quality and precision, and is suitable for a wide range of applications. It is easy to operate and maintain, and is capable of providing efficient and accurate results. The machine is reliable, durable, and can be used for long periods of time without any problems.

Customization:

Brand Name: Chuangwei
Model Number: CWPL
Place of Origin: China
Certification: CE and certificate of registion
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plywooden case
Delivery Time: 3 days after receive the payment
Payment Terms: T/T ,Paypal ,West Union ,L/C
Supply Ability: 300 sets/ month

Features:
Min. Pitch: 2.5mm
Type: Pneumatic
Max. Punching Speed: 1000pcs/min
Max. Sheet Thickness: 1.5mm
Contribute: 8t - 30t

Packing and Shipping:

Packaging and Shipping for PCB Punching Machine:
The package consists of the PCB Punching Machine and its accessories, which are securely placed in a shock-proof carton box. The box is then sealed with adhesive tape. Finally, the package is labeled and ready for shipping. We use reliable carriers to ensure that the package is delivered safely to its destination.
