Product Details:
Payment & Shipping Terms:
|
| Prodcut Name: | Printed Circuit Board Router | Function Edit: | Line,arc,circula,U-curve |
|---|---|---|---|
| Positioning Accuracy: | 0.01mm | Manipulator Motor Type: | JiaBao Series |
| Spindle: | KAVO | PCB Thickness: | 0.3-3.5mm |
| Workstation PCB Thick (max): | 5mm | Overall Weight: | 650KG |
| Highlight: | 0.1mm Precision PCB Punching Machine,KAVO Spindle PCB punching machine,3.5mm Printed Circuit Board Router |
||

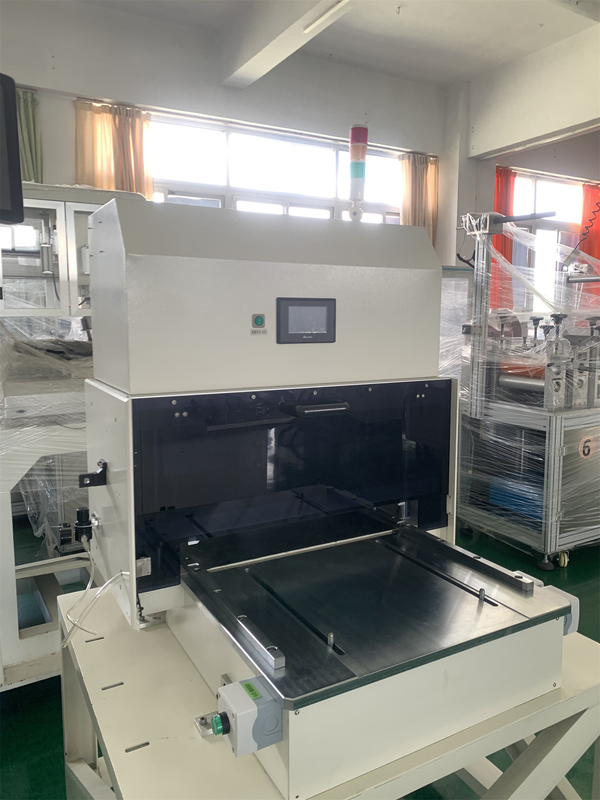

PCB Depaneling Machine is a CNC router designed to depanel PCBs, allowing them to be easily separated from each other. It features a manipulator axis working area of up to 830mm*580mm*50mm, a workstation PCB thickness of up to 5mm, and a power of 2.0KW AC380V. Its overall dimensions are 1370mm*1650mm*1450mm, and it has a routing bit life time checking and alarm system to remind operators to change routing bits when it finishes 120M cutting. The routing bit has a first 2mm cut for the first milling point, a middle 2mm cut for the second milling point, and the last 2mm cut for the third milling point, increasing its life time.
The X10 zoom-in image has the capability to make programming much easier, while increasing the accuracy of point setting. Additionally, two sliding tables provide simultaneous in-and-out movement, reducing tack times and improving productivity.
The AUTO MARK offset system is facilitated by CCD image processing, allowing for immediate path and routing simulation, reducing sudden mistakes prior to cutting. There is also a routing bit life time checking and alarm system that reminds the operator when it has finished 120M in cutting, while the routing bit is allocated so that the first 2mm cut is the first milling point, the middle 2mm cut is the second milling point, and the last 2mm cut is the third milling point, giving it an extended life time.
By implementing the CCD image check once again, this helps to reduce any unnecessary mistakes prior to the process of cutting.
| Parameter | Value |
|---|---|
| Manipulator Motor type | JiaBao Series |
| Spindle | KAVO |
| Overall Height offset | 60~110mm |
| Product Name | Printed Circuit Board Router |
| Workstation PCB Thick (max) | 5mm |
| Positioning Accuracy | 0.01mm |
| Power | 2.0KW AC380V |
| Feature | Has Routing Bit Life Time Checking And Alarm System To Remind Operator To Change Routing Bits When It Finish 120M Cutting. And Routing Bit First 2mm Cut The First Miling Point, Middle 2mm Cut The Second Milling Point, The Last 2mm Cut The Third Milling Point To Increase Its Life Time. |
| Function edit | Line,arc,circula,U-curve |
| Name | PCB Depaneling Machine,PCB Depaneling Router,PCB Depaneling Router Machine,PCB Router,PCB CNC Router |
ChuangWei is a leading brand of PCB Depaneling Machine, renowned for its quality and performance. It is made in China and certified by CE. We offer the most competitive prices and the minimum order quantity is 1 set. All our products are packaged in plywood cases to ensure safe delivery. We offer a 7-day delivery time and accept payment by T/T. Our PCB Depaneling Machine has a maximum supply capacity of 20 sets per month. It has a manual workstation PCB loading/unloading system and a power of 2.0KW AC380V. The overall weight is 650KG, and the PCB thickness ranges from 0.3 to 3.5mm. It also has an overall height offset of 60 to 110mm. This PCB Depaneling Router is an ideal choice for PCB CNC Router Machine and PCB Depaneling Router.
Product Name: ChuangWei Printed Circuit Board Router
Brand Name: ChuangWei
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 7 days
Payment Terms: T/T
Supply Ability: 20 sets per month
Feature: Has Routing Bit Life Time Checking And Alarm System To Remind Operator To Change Routing Bits When It Finish 120M Cutting. And Routing Bit First 2mm Cut The First Miling Point, Middle 2mm Cut The Second Milling Point, The Last 2mm Cut The Third Milling Point To Increase Its Life Time.
Power: 2.0KW AC380V
Overall Dimensions(W*D*H): 1370mm*1650mm*1450mm
Manipulator Positioning repeatability: 0.001mm
PCB Depaneling Machine Technical Support and Service
We provide complete technical support and service for our PCB Depaneling Machines. Our experienced and knowledgeable staff can help you with any issue or question you may have about our machines. From installation and operation to maintenance and troubleshooting, we are here to assist you in getting the most out of your PCB Depaneling Machine.
We offer a variety of support options, including phone support, email support, and on-site service. Our staff is available seven days a week, so you can always get the help you need. We also offer training services, so you can ensure that your operators are properly trained before using the machine.
We are committed to providing our customers with the highest level of service and support. If you have any questions or concerns about your PCB Depaneling Machine, please contact us. We look forward to hearing from you.
PCB Depaneling Machine's Packaging and Shipping:
