Product Details:
Payment & Shipping Terms:
|
| Power: | 220V, 4.2KW | Dust Filtration System: | 3KW Vacuum Cleaner |
|---|---|---|---|
| Tool Change: | Manual | Routing Bit: | 0.8/1.2/1.5/1.8/2.0mm |
| Machine Dimension: | 113*140*108cm | Board Positioning: | Dual Workstation With Nest Fixture Or Pin Fixture |
| Spindle Motor: | KAVO Spindle | Machine Weight: | 500kgs |
| Highlight: | Stand Alone CNC PCB Router Machine,220V CNC PCB Router Machine,CCD Camera CNC PCB Router Machine |
||
The PCB Router Machine is a powerful and efficient PCB routing equipment with Windows 7 system. It is especially designed for printed circuit board router, offering reliable performance and easy operation. The programming is Vision Assisted Point To Point Manual Teaching, enabling users to quickly learn and operate the machine. The machine provides editing function of Dry Run Vision Assisted and Test Run Mode, meeting different needs for users. In addition, it also offers Manual Tool Change for quick replacement of tools. The manipulator repeatability is ±0.02mm, ensuring high accuracy and stability. All these features make the PCB Router Machine an ideal choice for PCB routing applications.
| Parameter | Value |
|---|---|
| Panel Thickness | 0.5-3.5mm |
| Resolution | ±0.01mm |
| Name | PCB Router Machine/PCB Routing Equipment |
| Vision system | High Resolution CCD Video Camera |
| Machine weight | 500kgs |
| Machine dimension | 113*140*108cm |
| Routing Bit | 0.8/1.2/1.5/1.8/2.0mm |
| Warranty | One Year |
| Programming | Vision Assisted Point To Point Manual Teaching |
| Spindle motor | KAVO Spindle |

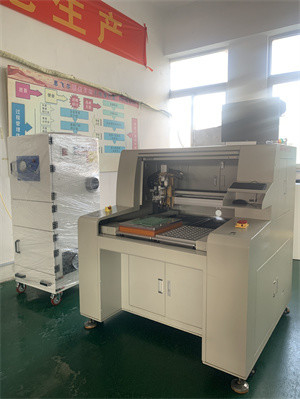

Chuangwei Stand Alone CNC PCB Router Machine is specifically designed for the precise and efficient routing of Printed Circuit Boards (PCB). This online or offline PCB Router depaneling machine can be used for a wide range of applications, such as the cutting of PCBs for medical devices, consumer electronics, aerospace, automotive, and many other industries. Its cutting accuracy is within 0.1mm, and the cutting speed is up to 10,000mm/min. This Stand Alone CNC PCB Router Machine also has a programmable vision-assisted point-to-point manual teaching feature, which ensures accurate and repeatable cutting performance. This machine is also equipped with dual workstations with nest fixture or pin fixture for board positioning, which makes it easier to operate. With an adjustable panel thickness from 0.5-3.5mm, this Stand Alone CNC PCB Router Machine is ideal for cutting various types of PCBs. In addition, this machine is also CE and ISO certified and has a minimum order quantity of 1 set. Furthermore, with a power of 220V and 4.2KW, this machine is highly efficient and reliable. The standard working area of this machine is 320*320mm and 450*350mm, and it is delivered in a plywood case within 7 days after payment confirmation. The payment terms are T/T, L/C or PayPal, and the supply ability is up to 100 sets/month.
We offer the highest quality Stand Alone CNC PCB Router Machine with outstanding features. Our automatic router machine is from Chuangwei, a well-known brand from Dongguan, China. We guarantee that all our products are certified with CE ISO and we have a minimum order quantity of 1 Set. The price is negotiable and the packaging details are plywood case. We deliver the product within 7 days after payment confirm and accept payments via T/T, L/C,paypal. Our Supply Ability is 100 Sets/Month. This machine has a working table of 2 and a power of 220V, 4.2KW. It is programmed with Vision Assisted Point To Point Manual Teaching. The machine weight is 500kgs and it is equipped with a 3KW Vacuum Cleaner dust filtration system. Our Stand Alone CNC PCB Router Machine is an online or offline PCB Router depaneling machine with excellent performance.
PCB Router Machine offers comprehensive technical support and service for its products, including:
For more information on PCB Router Machine's technical support and service, please contact us at info@example.com.
Packaging and Shipping for PCB Router Machine:
| Q | A |
|---|---|
| What's the brand name of the PCB Router Machine? | The brand name of the PCB Router Machine is Chuangwei |
| Where is it made? | It is made in Dongguan |
| What certifications does it have? | It has CE and ISO certifications. |
| What is the minimum order quantity? | The minimum order quantity is 1 set. |
| How will it be packaged? | It will be packaged in a plywood case. |
| How long will it take to deliver? | It will take 7 days after payment confirmation. |
| What payment terms do you accept? | We accept T/T, L/C, and paypal. |
| What is the supply ability? | The supply ability is 100 sets per month. |
| What is the price? | The price is negotiable. |
