Product Details:
Payment & Shipping Terms:
|
| Cutting Edge: | Smooth Edge | Max. Working Area (X X Y X Z): | 300x300x11 Mm, 400mmX300mm(Customizable) |
|---|---|---|---|
| Cutting Depth: | High Depth | Control System: | Software Controlled |
| Name: | Laser Depaneling Machine | Extraordinary Cut Quality Holding Tolerances: | As Small As 50 Microns |
| Laser Scanning Speed: | 2500mm/s Max High Speed | Laser Wavelength: | 355nm |
| Highlight: | 50 Microns Laser Depaneling Machine,Auto Vision Positioning Laser Depaneling Machine,Excellent Cut Finish PCB Depaneling Machine |
||

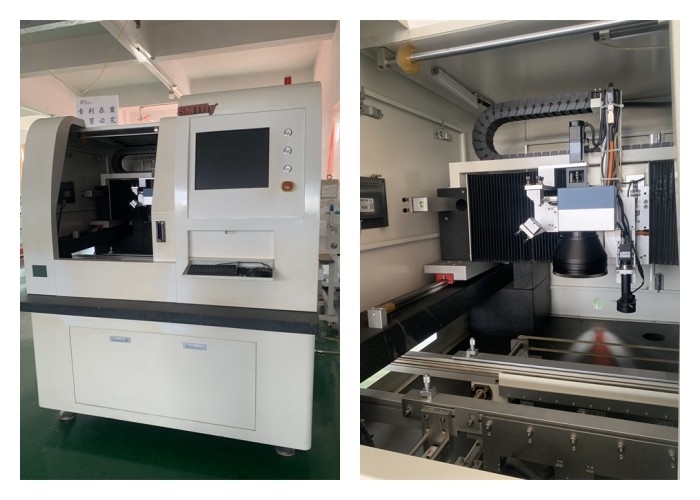

The Optowave Laser Depaneling Machine is a high-accuracy pcb depaneling equipment specially designed to provide excellent cutting accuracy for a wide range of circuit board applications. This pcb depaneling equipment is capable of delivering a cutting accuracy of ± 25 μm (1 Mil) and offers a maximum working area of 300x300x11 mm and 400mmX300mm which can be customized depending on the application. It also features high safety protection, making it an ideal choice for a variety of industrial applications.
This Laser Depaneling Machine is designed to provide a safe and reliable solution for depaneling and separating PCBs with a high degree of precision. It is built with a durable and robust structure and can deliver excellent cutting results with minimal maintenance. This equipment is also equipped with a high-voltage 220V 380V power supply, making it an ideal choice for a variety of industrial applications.
The Optowave Laser Depaneling Machine is an ideal choice for those who need a high-precision pcb depaneling equipment with excellent cutting performance. It is highly reliable and offers a high degree of safety protection, making it an ideal choice for a wide range of industrial applications.
| Control System | Software Controlled |
|---|---|
| Voltage | 220V 380V |
| Laser Power | 10W / 12W / 15W / 18W 30KHz |
| Cutting Accuracy | High Accuracy, ± 25 μm (1 Mil) |
| Name | Laser Depaneling Machine |
| Function | Depaneling FR4 / FPC |
| Cutting Area | Large Area |
| Laser Wavelength | 355 nm |
| Max. working area (X x Y x Z) | 300x300x11 Mm, 400mmX300mm(Customizable) |
| Safety Protection | High Safety Protection |
Chuangwei Laser Depaneling Machine is the ideal choice for separating and cutting PCBs into individual pieces. This machine can be used to process various materials, including normal copper-clad laminate, FR-4, CEM-3, aluminum, and other special materials. The laser wavelength of the machine is 355nm, with an Optowave laser head to ensure a smooth edge and fast processing speed. This laser depaneling machine is CE certified, meaning it is safe and friendly for the environment. It is also easy to operate and maintain.
The minimum order quantity for Chuangwei Laser Depaneling Machine is 1 set and the price is negotiable. Each set is packed in a plywood case for better protection during transportation. The delivery time is about 10 days after payment, and the supply ability is 260 sets per month. The payment terms are flexible, including T/T, Western Union, and L/C.
Chuangwei Laser Depaneling Machine is the perfect choice for PCB separator machine, PCB cutter machine, PCB depaneling equipment, and other laser depaneling needs. With its high speed, smooth edge, and friendly operating environment, it is the ideal solution for all your PCB production needs.
Chuangwei Laser Depaneling Machine is specialized designed for pcb depaneling, pcb separator machine, pcb cutting machine. It can cut the PCB with large area and high depth. The control system is software controlled. It is CE-certified and is ready for shipment with a minimum order quantity of 1 set. The price is negotiable and each set is packed in a plywood case. The delivery time is 10 days and payment can be done via T/T, Western Union, or L/C. The supply ability is 260 sets per month.
We provide complete technical support and service for our laser depaneling machine. Our highly experienced technical support team is available to answer any questions you may have about the machine or its operation.
We offer on-site installation and training for our laser depaneling machine. Our experienced technicians can assist you with setup, operation, and maintenance of the machine.
We also provide remote technical support and service for our laser depaneling machine. Our remote service allows us to quickly diagnose and troubleshoot any issues you may be having with the machine.
If you need any additional help or support for your laser depaneling machine, please don't hesitate to contact us.
