Product Details:
Payment & Shipping Terms:
|
| Manipulator Repeatability: | ±0.02mm | Panel Location: | Located By Tooling Holes Or Edges Of PCB |
|---|---|---|---|
| Routing Bit: | 0.8/1.2/1.5/1.8/2.0mm | Vision System: | High Resolution CCD Video Camera |
| Tool Change: | Manual | Standard Working Area: | 320*320mm,450*350mm,etc. |
| Name: | PCB Router Machine/PCB Routing Equipment | Power: | 220V, 4.2KW |
| Highlight: | High Resolution PCB Router,CCD Video Camera PCB Router,FR4 PCB Router Machine |
||

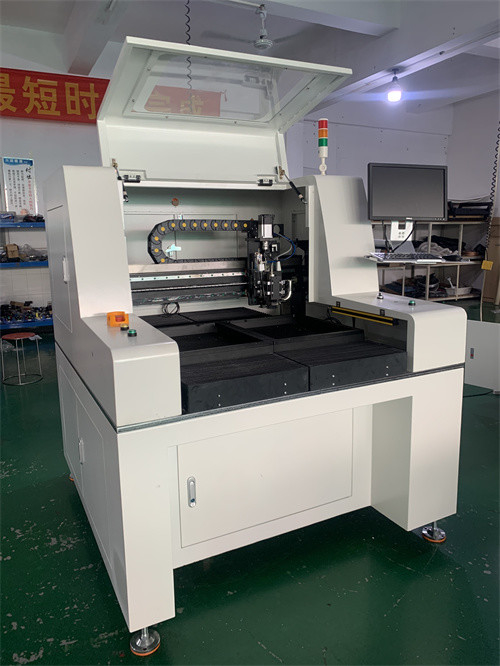

PCB Router Machine is a Windows 7 system based pcb cnc router which is designed for PCB routing applications. It is not only reliable, but also offers high accuracy due to its high precision router cutting machine. The standard working area of the machine is 320*320mm, 450*350mm etc. The tool change of the machine is manual and the panel location is located by tooling holes or edges of PCB. The manipulator repeatability of the machine is ±0.02mm and it is equipped with two working tables. It is designed to provide high quality results with great accuracy and is ideal for applications in PCB routing, various shapes cutting and other related applications.
| Parameter | Details |
|---|---|
| Working Table | 2 |
| Panel Thickness | 0.5-3.5mm |
| Panel Location | Located By Tooling Holes Or Edges Of PCB |
| Spindle motor | KAVO Spindle |
| Board Positioning | Dual Workstation With Nest Fixture Or Pin Fixture |
| Warranty | One Year |
| Tool Change | Manual |
| Programming | Vision Assisted Point To Point Manual Teaching |
| Dust filtration system | 3KW Vacuum Cleaner |
| Standard working area | 320*320mm,450*350mm,etc. |
| Product Name | PCB Router Depaneling Equipment , Stand Alone CNC PCB Router Machine, PCB Depaneling Router with CCD Camera System |
Chuangwei's PCB Router Machine is an automatic router machine designed to depanel printed circuit boards (PCBs). This PCB Routing Equipment is designed to meet the highest standards of quality and safety, with CE and ISO certification. It has a minimum order quantity of one set, and prices are negotiable. Packaging is done in plywood cases, and delivery times are usually within 7 days after payment has been confirmed. Payment methods include T/T, L/C, PayPal, and other forms of payment. This machine has a supply ability of 100 sets per month.
The PCB Router Machine is suitable for various types of PCB boards, such as FR1, FR4, and MCPCB. It has a panel thickness range of 0.5-3.5mm, and can accurately locate the board by the tooling holes or edges of the PCB. It uses a KAVO spindle motor for smooth and precise operation.
Chuangwei's PCB Router Machine is ideal for the automatic routing of PCBs in a variety of industries. Its high level of accuracy and reliability make it an excellent choice for the efficient depaneling of PCBs.
Chuangwei is a highly reliable and reputable brand for PCB Router Machine, which is located in Dongguan and CE and ISO certified. The minimum order quantity for PCB Router Machine is 1 set. The price of the product is negotiable. Packaging details are plywood case. Delivery time is 7 days after payment confirmation. Payment terms are T/T, L/C, Paypal. The supply ability is 100 sets per month. The panel location is located by tooling holes or edges of PCB. The spindle motor is KAVO spindle. The manipulator repeatability is ±0.02mm. The programming is vision assisted point to point manual teaching. The machine weight is 500kgs.
Chuangwei PCB Router Machine is an excellent choice for PCB Depaneling Equipment, automatic router machine and pcb cnc router. It is a highly reliable and durable product with great performance and excellent features. It is easy to use and provides excellent value for money. It is a perfect choice for any PCB routing application and provides great results.
At PCB Router Machine, we provide comprehensive technical support and service for our products to ensure they are running smoothly. Our technical support team is available to answer any questions you may have and provide step-by-step solutions. We can also provide maintenance and repair services for your equipment, as well as installation and setup assistance.
If you need help with your PCB Router Machine product, we encourage you to contact us. Our technical support and service team is available 24 hours a day, seven days a week. We are committed to providing fast and effective solutions to all your PCB Router Machine needs.
The PCB router machine will be wrapped in a high-density foam package to protect against damage during shipping. The package will also include a user manual and a power cord. The package will be shipped in a cardboard box with a durable plastic liner to protect against moisture and other environmental factors.
A: A PCB router machine is a device used for cutting, drilling, and routing printed circuit boards (PCBs). It is typically used to cut through the thin metal layers of a PCB, allowing for the placement of electrical components. Brand Name: Chuangwei
A: The PCB router machine is made in Dongguan, China.
A: Yes, the PCB router machine has CE ISO certification.
A: The minimum order quantity is 1 Set.
A: The PCB router machine can be delivered within 7 days after payment confirm.
