Product Details:
Payment & Shipping Terms:
|

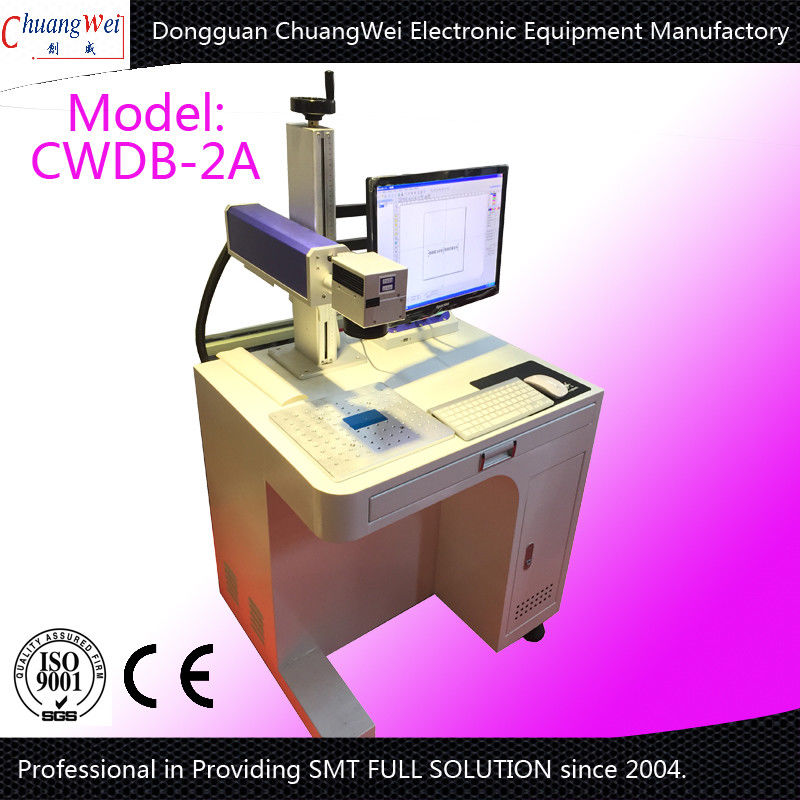

| Model: | CWDB-2A | Power: | 20W |
|---|---|---|---|
| Weight: | 75kgs | Laser Wave Length: | 1064mm |
| Power Stability(8h): | ±1%rms | Operation System: | 10%-100% Continuous Adjustable |
| Marking Range: | 300*300mm | Dimension: | 65*80*130cm |
| Highlight: | 3.5mm PCB Router,pcb depaneling router machine |
||
Description
The products are mainly for the metal laser marking, professional design, also part of the
plastic products processing can also be applicable to the equipment, the machine uses the
professional fiber laser, domestic and imported configuration, meet the needs of customers
for a variety of materials, the device width adjustable, let users a wider scope of application.
The laser adopts integrated whole structure, no optical pollution and power coupling loss,
air cooling, high efficiency, long life and less maintenance.
| Model | CWDB-2A |
| Power | 20W |
| Laser wave length | 1064 mm |
| Repetition frequency | 20-500KHZ |
| Temoo gaussian beam | <2 |
| Laser output power | 10%-100% continuous adjustable |
| Power stability(8h) | ±1%rms |
| Focus spot diameter | <0.01mm |
| Amrking machine type | Static/dynamic marking |
| Marking range | 300*300mm |
| Spindle motor power | 0.5KW |
| Spindle motor speed | 50000r/m |
| Spindle motor cooling | Air-cooled |
| Machine dimension | 980*580*615mm |
| Weight | 135KG |
| Security settings | emergency stop switch |
◆Fiber laser marking machine beam quality than the traditional solid laser marking machine, as the
base mode (TEMOO) output, gathering spot diameter 10um, divergence angle is the 1/4 of the
semiconductor pump laser. Particularly suitable for precision, fine marking.
◆ Electro optical conversion efficiency is up to 30%, the whole power consumption less than 500W, is
the lamp pumped solid laser marking machine 1/10, greatly saving energy consumption expenditure.
◆ The laser does not require any maintenance, nor does it need to adjust or clean the lens.
◆ Using a laser diode as the pumping source, the average working time is 10 hours.
◆ The processing speed is 2‐3 times of the traditional laser marking machine.
