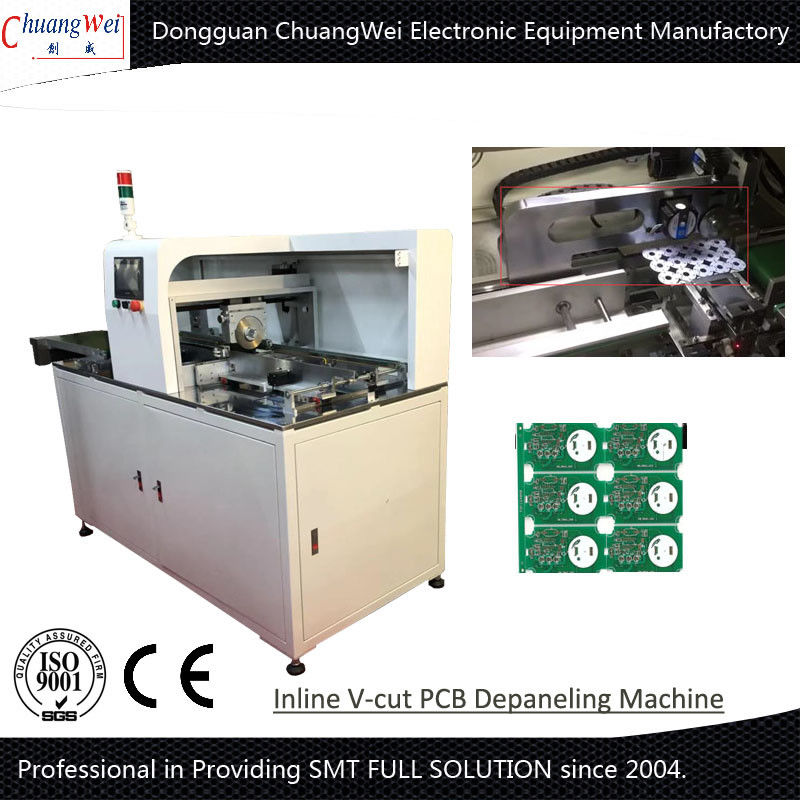

PCB Separator Inline Printed Circuit Board PCB Depaneling Equipment with V-cut

PCB Separator Inline Printed Circuit Board PCB Depaneling Equipment with V-cut

PCB Separator Inline Printed Circuit Board PCB Depaneling Equipment with V-cut

Large Image : PCB Separator Inline Printed Circuit Board PCB Depaneling Equipment with V-cut

Product Details:

Place of Origin:	China
Brand Name:	Chuangwei
Certification:	CE
Model Number:	CWVC-5

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	1USD/1set
Packaging Details:	wooden case
Delivery Time:	8-15 days after payment
Supply Ability:	30sets/month

Contact Now

Detailed Product Description

PCB Width:	300mm(could Be Customized)	Driven Mode:	Stepping / Servo Motor(optional)
V-cut Angel:	>40°	Cutting Speed:	300-500/s
Blade Material:	High Speed Steel	Air Pressure:	0.5-0.8Mpa
Voltage:	220/110V	Packaging Weight:	300kgs
Highlight:	metal cutter machine , pcb shear cutter

PCB Separator Inline Printed Circuit Board PCB Depaneling Equipment with V-cut Parameter:

Blade dimension	Circular blade:￠80 ￠60mm Linear Blade: 356×43.5×6mm
PCB width	300mm(could be customized)
Driven mode	Stepping / Servo motor(optional)
V-cut angel	>40°
Cutting speed	300-500/s
Blade material	High speed steel
Air pressure	0.5-0.8Mpa
Voltage	220/110V
Dimension	1250(1560)mm×800mm×1295mm
Packaging weight	300kgs

PCB Separator Inline Printed Circuit Board PCB Depaneling Equipment with V-cut Description:

This is a double directions depaneling with horizontal and vertical boards;

to realize inline depaneling for shape panels at one time;

High automation, connect PCB loader and unloader, can be achieved without human, save

labor.

Touch screen operation, enabling quick product changing, PLC data storage

capacity is 100 programs.

One direction of depaneling is also workable, could set horizontal and vertical depaneling by

touch screen, more intelligent.

Dust cleaner is optional.

PCB Boards Cutter Machine Inline Printed Circuit Board PCB Depaneler Equipments Features:

※ Workable for "#" shape depaneling.

※ Horizontal and vertical depaneling is optional.

※ Blade set can be quickly changed.

※ Could connect PCB loader and PCB unloader to realize fully automated production to

save labor.

※ Simple operation, workers can operate it after training.

※ Unique new blade design, lifetime should be increased by 1.5-2 times.

※ Safety: Sensor is used to ensure safe production.

PCB Boards Cutter Machine Inline Printed Circuit Board PCB Depaneler Equipments Pic:

PCB Separator Inline Printed Circuit Board PCB Depaneling Equipment with V-cut 0
