Product Details:
Payment & Shipping Terms:
|
| Color: | White | Spindle: | KAVO |
|---|---|---|---|
| Spindle Speed: | 60000RPM | PCB Material: | FR4, CEM, MCPCB |
| PCB Thickness: | 3.0mm | Name: | PCB Depanelizer |
| Highlight: | pcb depaneling router,printed circuit board router |
||

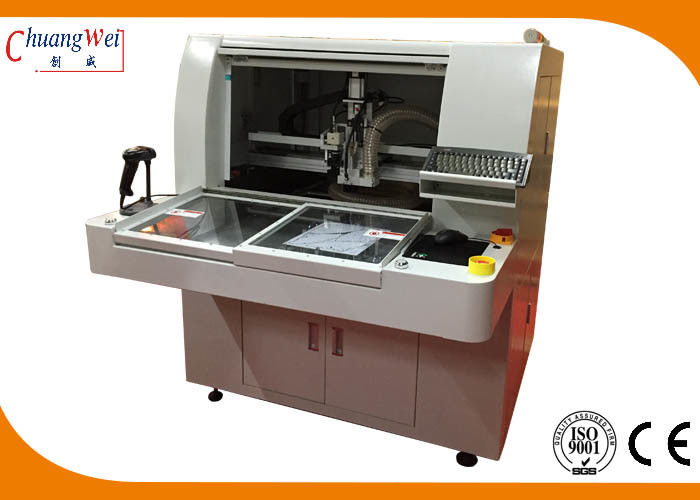

PCB Depanelizer PCB Router Machine with Smart Software Gerber
PCB Depanelizer Features:
1. Smooth cutting finish only by router cutting .
2. There is little distortion on PCB during cutting because using high-frequency spindle motor . It is 1 / 10 of pressing , 1 / 100 of breaking by hand .
3. One-touch program changeover .
4. Able to cut liner and arc with router machine , diminish the restriction on PCB design .
5. Read QR code or JIG BIT auto select cutting program , or check accordance between cutting program and JIG .
6. Powerful Dust Collection minimized dust adhesion on PCB .
7. Developed high performance router bit that expanded bit life and relief littering .
8. Cut down PCB cost because need not making V-groove on PCB
PCB Depanelizer Specification:
| I. Hardware | |
| System models / types | Windows 7 |
| Overall | |
| FootPrint (LxWxH) | 800mm*850mm*1700mm |
| Weight (Approximate) | 350KG |
| Adjustable machine footings (for height) | 60~110mm |
| Manipulator | |
| Manipulator Motor | Panasonic MINAS A5 series |
| Manipulator Repeatability | 0.001mm |
| Axis configuration | |
| Maximum Axis Travel (X,Y,Z) | 400mm*650mm*50mm |
| Work station | |
| Board Positioning | Fixture positioning, thimble universal positioning, vision correction |
| Loading/Unloading | manual |
| Routing Range | 300mm*280mm |
| Panel Thickness | 3mm |
| Fixturing | |
| Rigid Fixturing | Universal thimble & anti-static fixture |
| Top Clamp | Using hole positioning |
| Spindle Motor | |
| Power | 100W |
| Max. speed | 60000rpm/min |
| Cooling | Natural cooling and air-cooled |
| Router bit size | 3mm*3mm |
| Tool change | Use Special wrench |
| Routing capability | |
| Max routing speed | 100mm/s |
| Repeatability | 0.02mm |
| Vacuum System | |
| Power | 0.75KW220V Single-phase motor |
| Filtration | Vertical and horizontal |
| Utilities | |
| Power | 1.5KW AC220V |
| Air supply | 4~5KG/cm2 |
| II. Software and Programming | |
| System platform | Windows 7 |
| System Stability | 24 hours without exception |
| Vision system | Precision CCD vision alignment correction system (SONY 250 series) |
| Programming | |
| On-line | Online Programming |
| Editing function | Straight, diagonal, circular arc, circle |
| No. of Programs that can be installed | select a storage location according to client's requirement |
| Configure CCD Camera for programming | Fangchen F130 High Precision CCD |
| Toolbit Diameter Compensation | Provide different angles to compensate for the user to choose different shapes |
| Filter Change Interval (distance) setting | automatic cleaning filter and dust to dust collection box when processing is completed centralized each time |
| Operation Monitors | |
| 3-color Tower Light | 3-color light monitor the machine's working conditions |
| Tool Break Detection | Automatic detection of tool life & using time |
| Motor Overheat Detection | overheating, overload, low voltage protection function |
| Servo Overload Detection | Overload, the line is normal, low-voltage protection function |
| Tool Life Tracking | tool life time detection |
| PCB Board Counter | cutting item,cutting counting, diversified way of counting. |
| Vacuum Filter Change Alarm | not use to vacuum filter |
| Machine Error History | The software automatically records all alarms memory |
| III. Accuracy | |
| Axis positioning accuracy | 0.01mm |
| Routing Accuracy | 0.02mm |
| IV. Safety | |
| Enclosed Work Area | Using four seal protection |
| Door Interlock Sensors | micro-switch sensor |
| Emergency Stop Button | Yes |
PCB DepanelizerTechnical characteristics:
1. Structural precision, the load evenly, to eliminate internal stress
2. Safe, easy to operate
3. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board)
Our Advantages and Service:
1. Pcb depanelizer original manufacturers, price concessions
2. Promise day technical support services
3. Limit the handling of complaints, half an hour back to customers
4. Depanel Experts, the provision of professional PCB sub-programme
5. On-site installation and training is available
