Product Details:
Payment & Shipping Terms:
|
| Weight: | 98KG | Working Size: | Max150x150mm |
|---|---|---|---|
| Heating Method: | Pulse Heating, The Rise Time Is 1 ~ 2S | Pin Distance Range: | ＞0.2mm |
| Welding Pressure: | 50N | Welding Pressure Error: | 1N |
| Welding Precision: | Pitch 0.2mm | Working Air Pressure: | 0.5~0.80 Mpa |
| Application: | FPC FFC HSC USB To PCB | Color: | White |
| Highlight: | pcb welding machine,bonding machine |
||

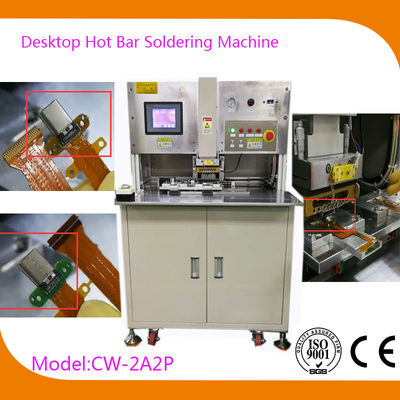

High Precision Tab HSC Hot Bar Soldering Equipment-Hot Bar Soldering Machine introduction:
This device is designed for double - deck working mode of double welding head. The equipment adopts high density metal material, so the lifting temperature is fast and the service life is special. The equipment operation is easy to understand. It is special in welding connector and wire with single side and double sides.

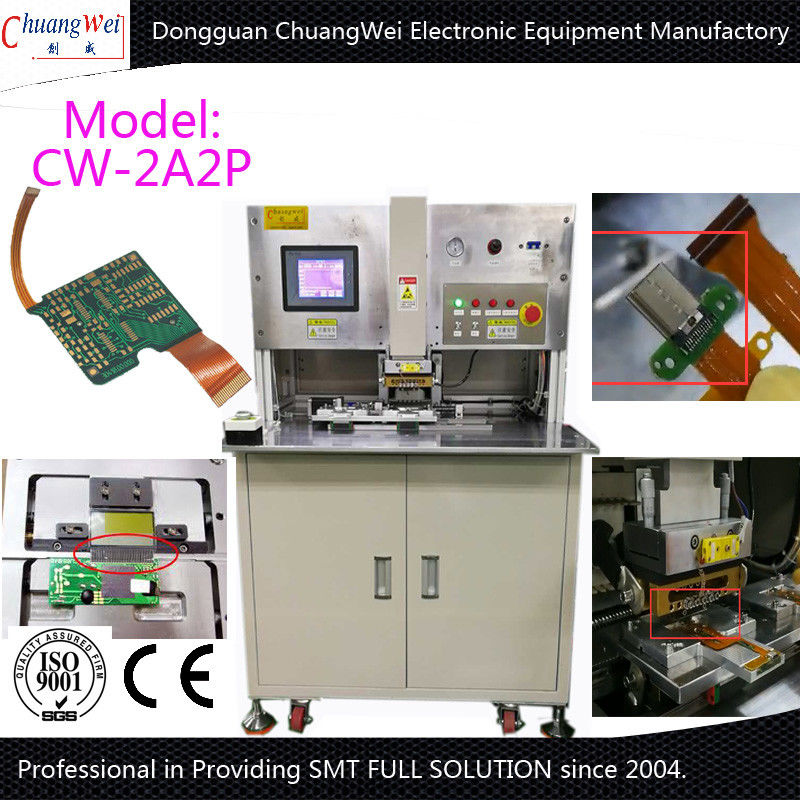

Hot Bar Soldering Machine Heat Welding Machine,CW-2A2P Working Process:
Hot Bar Soldering Machine Heat Welding Machine,CW-2A2P Specificaiton:
|
Subject
|
Parameters |
| Machine Size | (L)850×(W)650×(H)1320mm |
| Working Size | Max 150x150mm |
| Weight | Approx 98KG |
| Working Air Pressure | 0.5~0.80 Mpa |
| Power Supply | AC220V±10％50HZ.2000W |
| Lifting Temperature S | Five section |
| Work Environment | 10~60℃,40％~95％ |
| Welding Pressure | 4~50N |
| Welding Pressure Error | ±1N |
| Temperature Setting | RT∽500℃,±2℃ |
| Heating Rate | 250℃/s |
| Welding Time | 1-99.9S |
| Welding Precision | Pitch 0.2mm |
| Welding Head Size(M metal) | Max 50*3mm |
| Welding Head Size(T metal) | Max 100*3mm |
| Welding Head Flatness | ±0.02mm |
| Pin Distance Range | ＞0.2mm |
| Alignment Mode | Artificial Alignment |
| Positioning Fixture | 2 |
| Way of Discharge | Artificial pick and Place |
| Start Mode | Pressed by Hands |
| Heating Method | Pulse heating, the rise time is 1 ~ 2S |
| Work Stage | Left and Right Automatic Push and Pull |
| Platform Control | Precision Motor Control,Error <0.02mm |
Hot Bar Soldering Machine Heat Welding Machine,CW-2A2P Features:
Customized based on the connector;
Double jig welding;
Double- desk working mode;
Can achieve ultra-fine pitch welding;
Applicable to welding the cable and connection of communicating machine.
Hot Bar Soldering Machine Heat Welding Machine with CE,CW-2A2P
Electronic Bonding Equipment Soldering for FFC HSC FPC to PCB About us
Dongguan ChuangWei Electronic Equipment Manufactory was founded in 2004,is located in the world manufacturing city Dongguan,Guangdong,China. The company is committed to development,manufacture,sales and service for professional pcb separator/pcb depanelizer electronic equipment machinery. The company has advanced production and processing equipment and an experienced development and manufacture team, half of them have over 10 years experience in electronic equipment industry.
Begin with 2004 the company leader invested to develop and manufacture the PCB separator and PCB depaneling machine. From then on we pay more attention to product quality, safe to use and product innovation, so far we have produced many high quality, stable performance, high cost-effective products. Improve production yields, increase productivity, and thus enhance the market competitiveness of our customers.
Until now we have design different separating PCB types of PCB separator and PCB depaneling machine with manual, motor-driven, pneumatic-driven, mold punching, milling cutter router. Due to the good quality and reasonable price our customers are all over the world. Up to now ChuangWei have became one of the biggest PCB separator production base in China
Company always insists to the "customer needs is our goal, creating most value for customers", strives to provide customers with first-class products, first-class service. So since date established we very attached importance to product quality,continuous improvement for manufacturing process,try hard to save money for customers.
Our great mission is to be the most professional and excellent supplier in the pcb separator/pcb depanelizer electronic equipment industry.
